Reach New Frontiers

No Blind Spots

Anti Jam
Anti Interference

  • 15s
    Take Off

  • 8K 10x
    Optical Zoom

  • IP43
    Weather Rating

  • Hot-Swappable
    Batteries

  • Navigation In GPS
    Denied Environments

  • 12.4 miles
    Transmission Range

  • 42 mins
    Max. Flight Time

  • 720° Obstacle
    Avoidance

A Leader of Drone Intelligence

The EVO Max 4T brings powerful technologies and advanced autonomy to users. EVO Max 4T assesses complex environments to create real-time 3D flight paths for unparalleled obstacle avoidance.Advanced sensors make flight in GPS unavailable areas possible and the incredible new thermal payload unlocks new object identification and tracking scenarios.With a foldable, weather-resistant design, the EVO Max 4T is as portable as it is capable.

Video

  • Autonomous Path Finding
    Autel's Autonomy Engine collects surrounding environmental data and plans 3D flight paths through complex environments such as mountains, forests, and buildings. Use cases include rapid 3D scene reconstruction, public safety overwatch, industrial inspection, and land surveying.
  • Navigation in GPS Denied Environment
    Advanced sensors allow the EVO Max 4T to navigate within hardened structures, underground, or in environments without GPS.
  • Accurate Object Identification and Tracking
    Based on Autel's AI recognition technology, the EVO Max 4T can automatically identify and lock onto different types of targets such as heat sources, moving people, or vehicles and achieve high-altitude tracking and data collection for law enforcement.

No Blind Spots
Ultimate Obstacle Avoidance

EVO Max 4T is the only commercial drone that combines traditional binocular vision systems
with millimeter wave radar technology. This allows the EVO Max 4T's onboard Autel Autonomy
Engine to perceive objects down to 0.5 inch, eliminating blind spots and enabling operation
in low light or rainy conditions.

*OA performance varies with drone speed, lighting, and flying conditions and
is not meant to replace pilot responsibility.

Front OA Camera

Downward Fisheye Camera

Upward Fisheye Camera

Rear OA Camera

Anti Jam, Anti Interference

The EVO Max 4T uses advanced flight control modules and algorithms specially designed to counter RFI, EMI, and GPS spoofing. This enables the EVO Max 4T to fly confidently near power lines, critical structures, and in complex areas.

Weather Rating

IP43

Weather Rating

IP43

Platform Capability

EVO Max 4T redefines portability with its powerful platform and all weather design.

  • 42 mins

    Max. Flight Time

  • IP43

    Weather Rating

  • 23,000 ft

    Service Ceiling

  • 12.4 miles

    Image Transmission Range

  • 27 mph*

    Max. Wind Resistance

42min

*Takeoff and landing can withstand wind speeds up to 27 mph (12 m/s).

A-Mesh 1.0 - The Drone Industrys First
Mesh Networking Technology

EVO Max 4T features the new A-Mesh system, enabling drone-to-drone autonomous
communication, connection, and collaboration.

  • Strong Anti-Interference

    The EVO Max 4T can communicate seamlessly with other drones in the vicinity, unlike a traditional chain structure. If a single drone fails or exits unexpectedly, the entire system will independently self-organize and continue to relay critical information.

  • Beyond-Line-of-Sight Applications

    With A-Mesh, multiple aircrafts in the vicinity can act as relay points to greatly improve BVLOS operation effectiveness.

  • Full-Fleet Control

    Multiple drones can be controlled autonomously by 1 pilot or by a group of pilots simultaneously with or without LTE coverage.

  • Enhanced Range

    Communication nodes can be placed statically on hills or poles to provide full coverage to an area, or a swarm of drones can provide mobile communication points to extend the coverage of the entire group.

Autel SkyLink 3.0

Autel SkyLink 3.0

The EVO Max 4T SkyLink 3.0 system comes with 6 antennas, 4 frequency bands, AES-256 encryption*, and optional 4G integration* to provide users with the most advanced flight capabilities ever in an EVO.

  • 12.4 miles

    Image Transmission Distance

  • <150ms

    Latency

  • 1080p/60fps

    Real-Time Image Quality

  • 900MHz/2.4GHz/5.2GHz/5.8GHz**

    Frequency Bands

*This feature will be available in a future update.

**5.2GHz is only applicable for FCC, CE, and UKCA regions. 900MHz is only applicable for FCC regions.

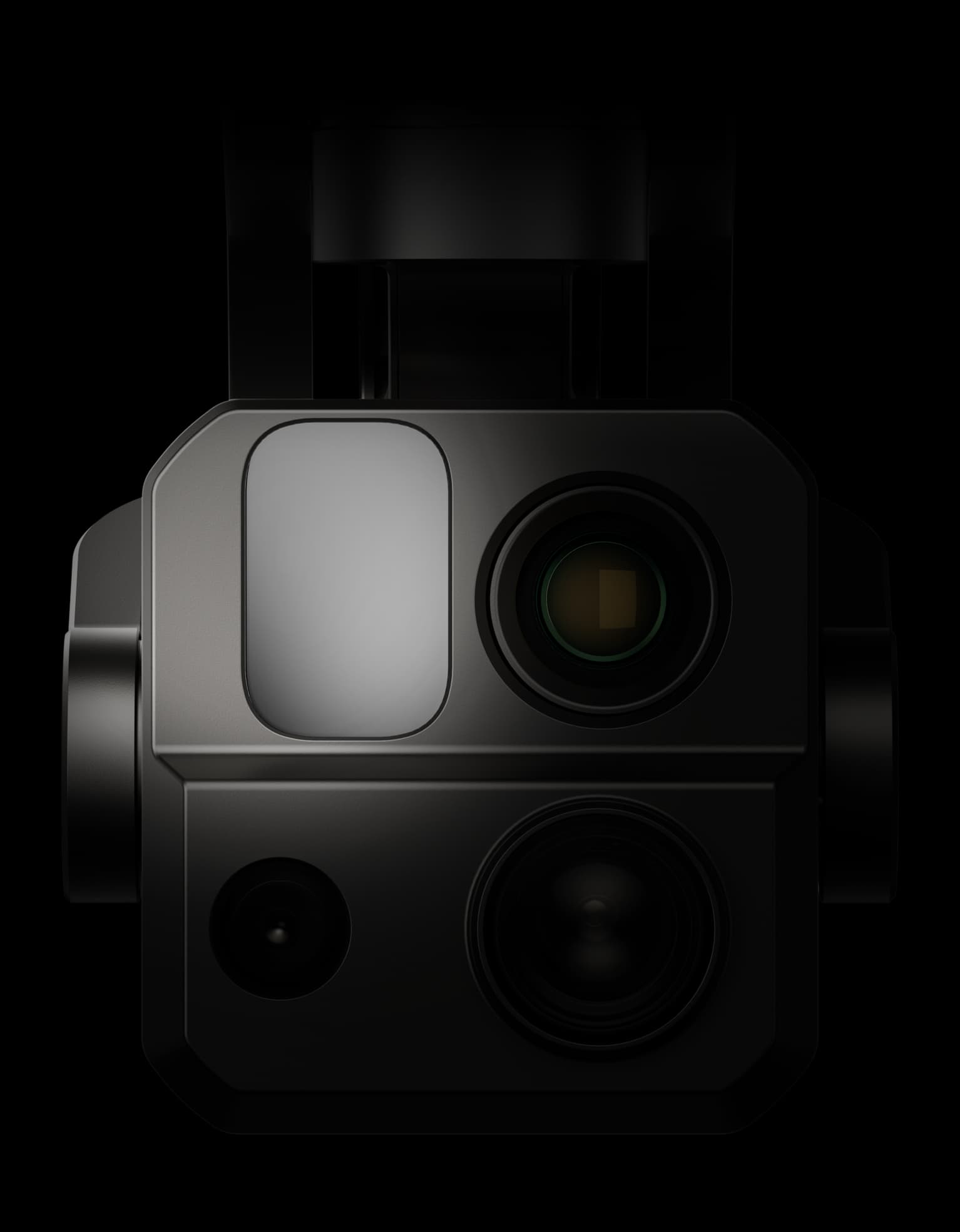

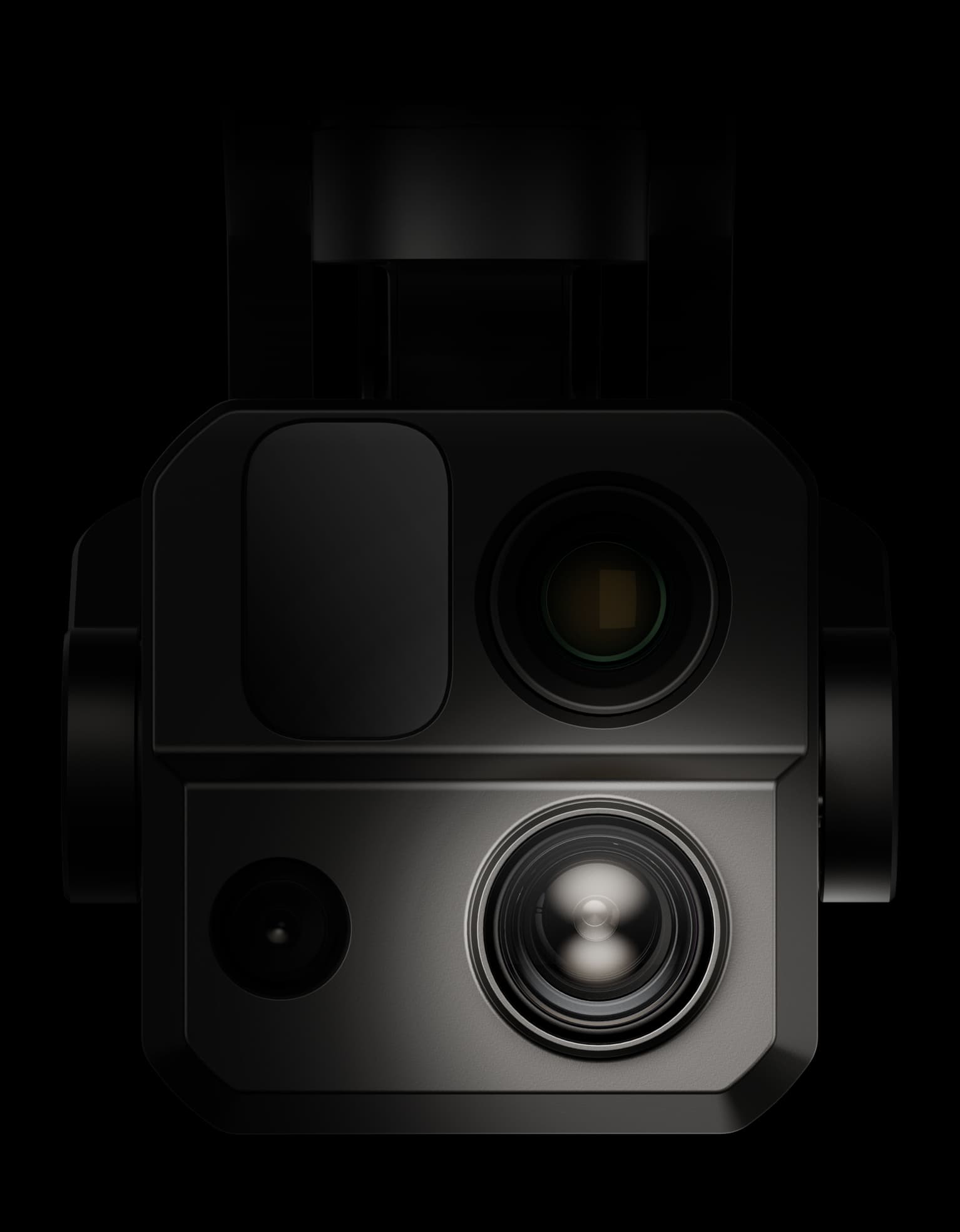

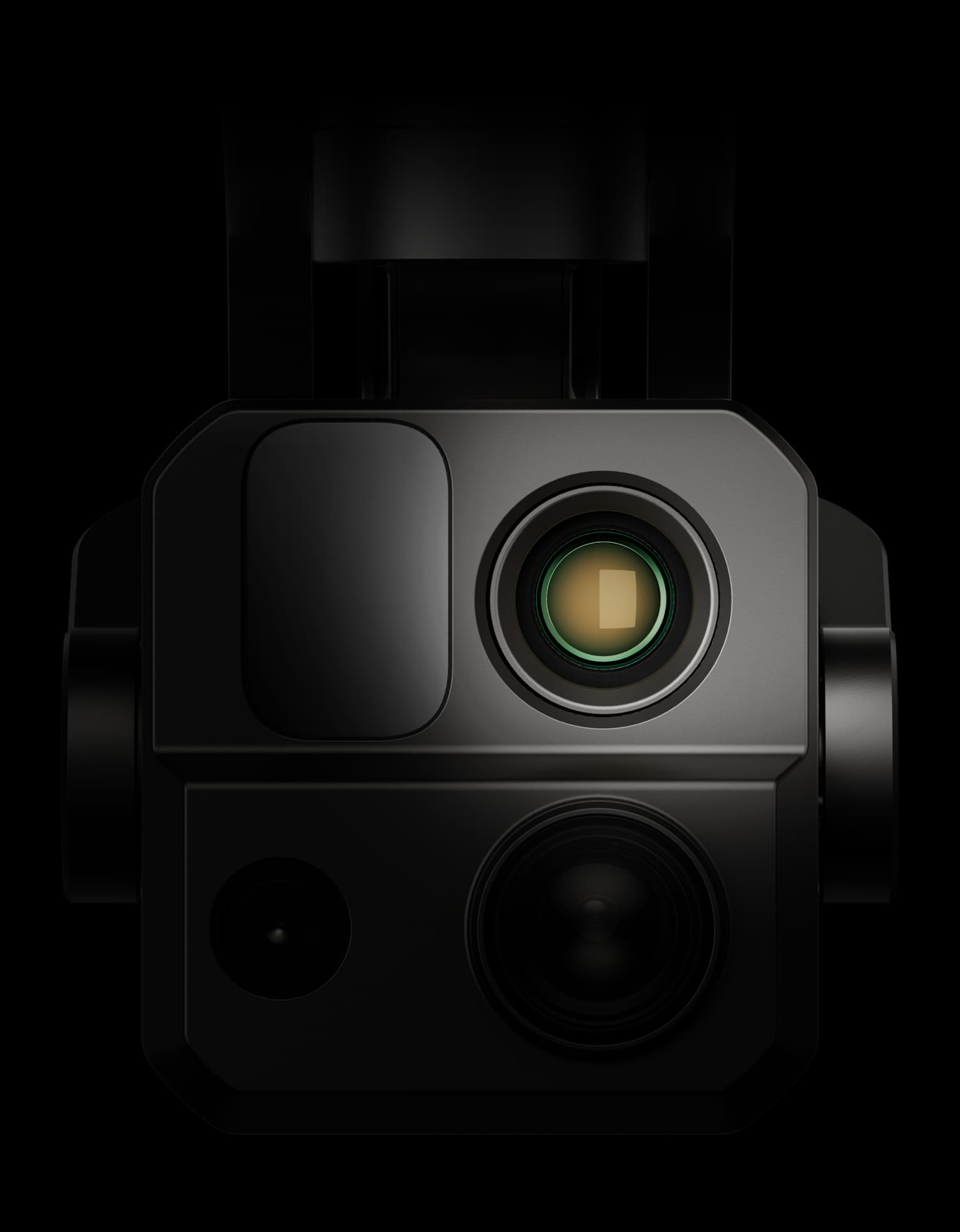

Mission Ready Payload

The payload integrates wide-angle camera, zoom camera, thermal camera and a laser
rangefinder for all data capture needs and critical decision making.

  • 50MP

    Wide Camera

  • 48MP

    Zoom Camera

  • 8K 10x

    Optical Zoom

  • 160x

    Max. Hybrid Zoom

  • 640x512

    Thermal Resolution

Wide Camera
Zoom Camera
Thermal Resolution
Laser Rangefinder
Wide Camera

50MP

1/1.28" CMOS

Aperture: f/1.9

DFVO: 85°

Equivalent: 23 mm

Zoom Camera

48MP

8K 10x Optical Zoom

160x Max. Hybrid Zoom

Aperture: f/2.8-f/4.8

Thermal Camera

640x512

Aperture: 13mm

16x Digital Zoom

Temperature Measurement
Range: -20°C to 550°C

Laser Rangefinder

Measuring Range: 5 - 1200m

Measurement Accuracy: +1m

  • Zoom Camera
  • Wide Camera
  • Thermal Camera
  • Laser Rangefinder
  • Supports for 8K 10x optical zoom, and 160x Max. Hybrid Zoom with clear details on targets up to 1.24 miles away.

  • Moonlight Agorithm 2.0 boosts postprocessing anp allows the pilot to capture crisp, detailed images in low-light environments.

    Video: support 4K 30fps, max ISO 64000.

    Photo: Moonlight mode reduces noise and enhances HDR.

  • Equipped with 640*512 hightresolution thermal imaging camera, 30fps, and 16x digital zoom.

  • Tap a target to get the coordinates and altitude rapidly from up to 0.75 miles away.

Autel Enterprise App Platform

The Autel Enterprise App is built from the ground up for industrial applications and features a brand-new interface for simple, efficient operation. Additional features and semi-autonomous modes maximize the EVO Max 4T's mission capability.

Smart Features

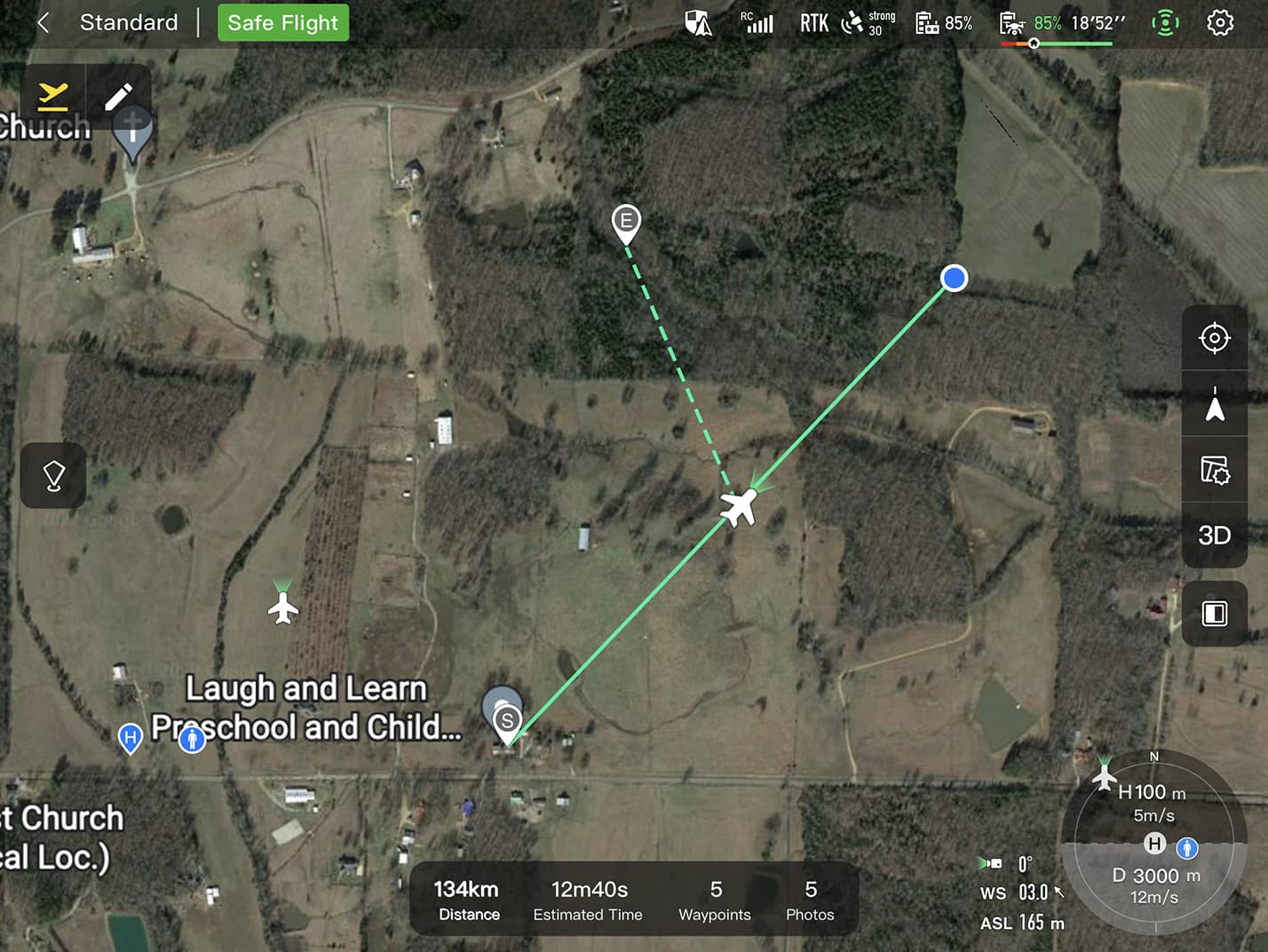

3D Map Planning

Plan, create, and execute 3D waypoint mission plan on a 3D map.

Quick Mission*

Temporary quick missions can be created while executing other missions, and multiple sub-missions can be stacked for enhanced flexibility.

Mission Reproduction*

With this feature activated, fly a manual or semi-autonomous mission, or string multiple missions together. The EVO Max4T will automatically record the camera angles and replicate the mission you just flew.

*This feature will be available in a future update.

Multiple Mission Types

The Enterprise App provides various autonomous and semi autonomous mission planning
for public safety, inspection, and surveying.

*This feature will be available in a future update.
Terrain Follow*

Maintain relatively constant altitude from the
ground for uneven or sloped terrain.

Rectangular Mission

Supports one-click automatic generation of
a rectangular flight area.

Automatic Mission Generation And Data Capture*

Automatically produce routes by adding regional boundary
points through dots or importing KML files.

Waypoint Missions

Users can add waypointsfor flexible, non-structured flight paths.

Oblique Photography

Automatically plan 5 groups of routes (1 ortho + 4 oblique)
according to the flight area set by the user.

Spiral Mission*

Supports helical flight search in a designated area for SAR.

Vertical Scan*

Perform vertical surveys for building facades,
open pit walls, and towers.

Corridor Mission*

Supports intuitive and effective corridor mission planning for roads, rivers, pipelines, power lines and other narrow,large-scale terrain.

Polygon Mission

Supports one-click automatic generation of polygon flight areas.

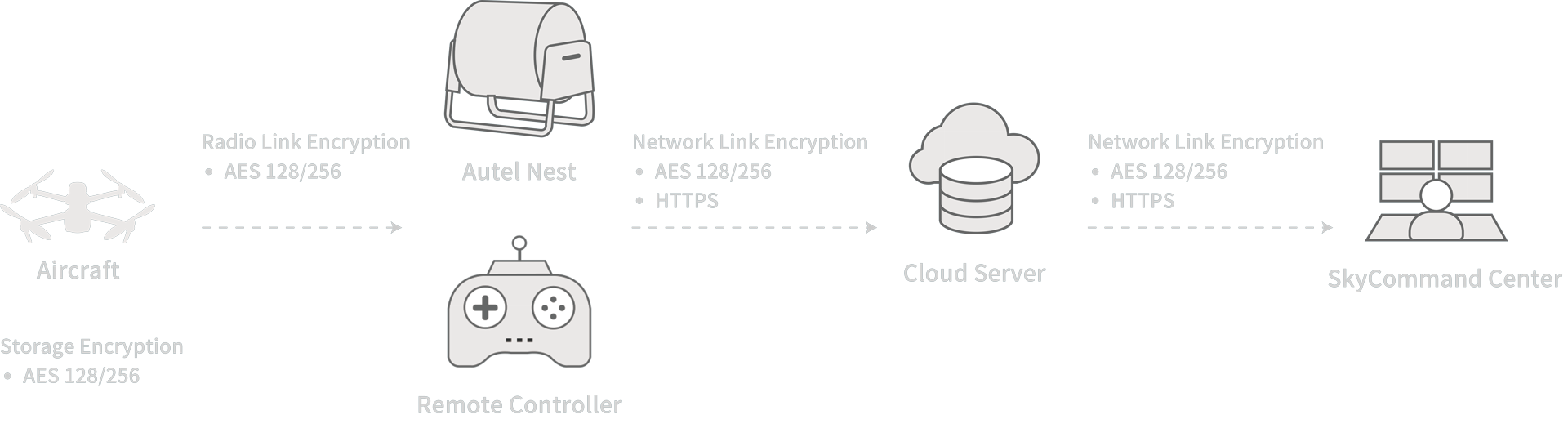

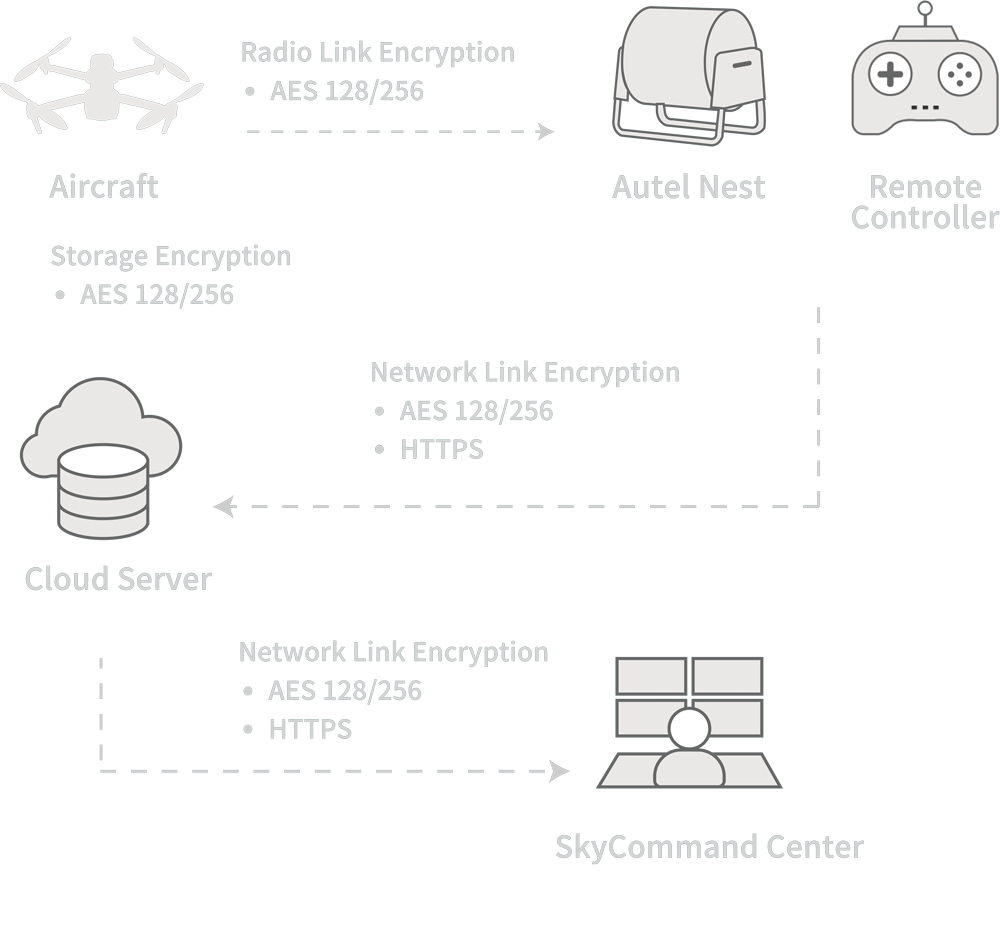

Data Security

Privacy Protection: Data involving user and aircraft information, including flight logs, locations,
and account information can only be physically accessed via the aircraft locally.

Encrypted Data Storage: Supports AES-256 encryption for photos, videos, and flight logs,
are password-protected.

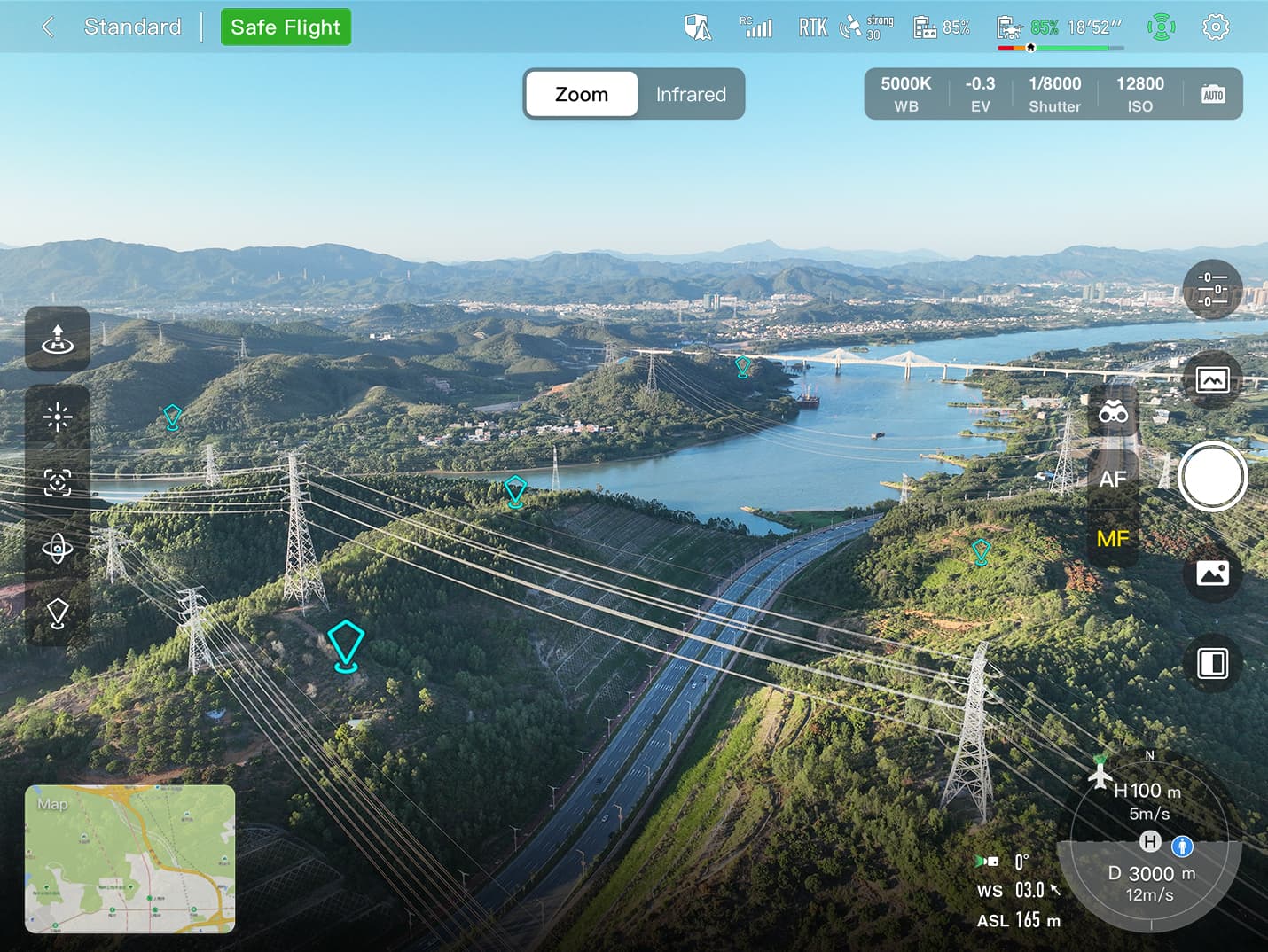

Enhanced Live-View

Multi-channel Projection Screen*

Supports simultaneous output of RGB, infrared, night vision, and wide-angle images.

AR Scene*

Geo-location data and other aircraft location info detected by ADS-B can overlay on real-time map, which is convenient for users to confirm the drone's location and avoid airborne risks.

*This feature will be available in a future update.

Autel SDK

The Autel SDK is open to the world, helping developers and partners reduce software and hardware development costs and jointly create a new industry ecosystem.

  • Mobile SDK

    Open UX SDK (iOS&Android) can directly call up the ready-made interactive interface.

  • Payload SDK*

    Unified interface standards support access to third-party mounts such as microphones and gas detectors.

  • Cloud SDK*

    Enables remote live broadcast and control of drones and Nests through third-party platforms or web pages.

*This feature will be available in a future update.

Accessories

  • Autel Smart Controller V3

    Daylight Readable Display: 7.9 inches, 2000nit maximum brightness, 2048*1536 resolution.

    SuperDownload: Download footage from drone to mobile device at a maximum rate of 20MB/s.

    Functional Interface: HDMI ports allow connection to 3rd party displays or monitors.

    Ultra-Long Battery Life: Up to 4.5 hours of continuous operation. 2-hr fast charging from empty.

    Local Storage: Built-in 128G storage space allows 3rd party apps and mission media storage.

    More+
  • Live Deck 2 (optional)

    Broadcast live mission intel to other personnel in the operation for enhanced situational awareness and critical decision making without the need for LTE connection. The EVO Max 4T is compatible with Live Deck 2, which offers multiport streaming to monitors and Wi-Fi support for multiple local smart phones.

    More+
  • RTK Module (optional)

    Provides centimeter-accurate positioning data for mapping and reduces electromagnetic interference for flying near critical structures.

Application

  • Inspection

  • Search & Rescue

  • Public Safety

  • Mapping

  • Firefighting
