The EVO Max 4NZ V2 is specifically designed for night patrol and reconnaissance missions, delivering unmatched visibility and targetrecognition to ensure mission success even in the most challenging low-light conditions. It leverages Autel Autonomy technology to realize holistic path planning, 3D scene reconstruction, and fully autonomous obstacle avoidance and return-to-home even in highly complex environments. The high-precision visual navigation system ensures stable and reliable flight with accurate, low-latency positioning even facing severe signal interference, signal blocking, or weak GNSS signals. With a multi-sensor fusion system combining binocular fisheye vision and millimeter-wave radar, it achieves 720°omnidirectional perception without blind spots and real-time obstacle avoidance. Driven by the combination of wide-angle and telephoto night vision cameras, the EVO Max 4NZ V2 can identify human targets at distances up to 350 meters in the dark. Additionally, its infrared laser fill lights provide illumination up to 200 meters, enhancing both zoom and wide-angle night vision capabilities. Providing full-scene coverage with detailed long-range observation and wide-angle dynamic sensing, the EVO Max 4NZ V2 is always the reliable solution for complex night operations.

No Blind Spots

Superior Anti-
Interference Capability

High-Precision Visual Navigation

A-Mesh
Networking

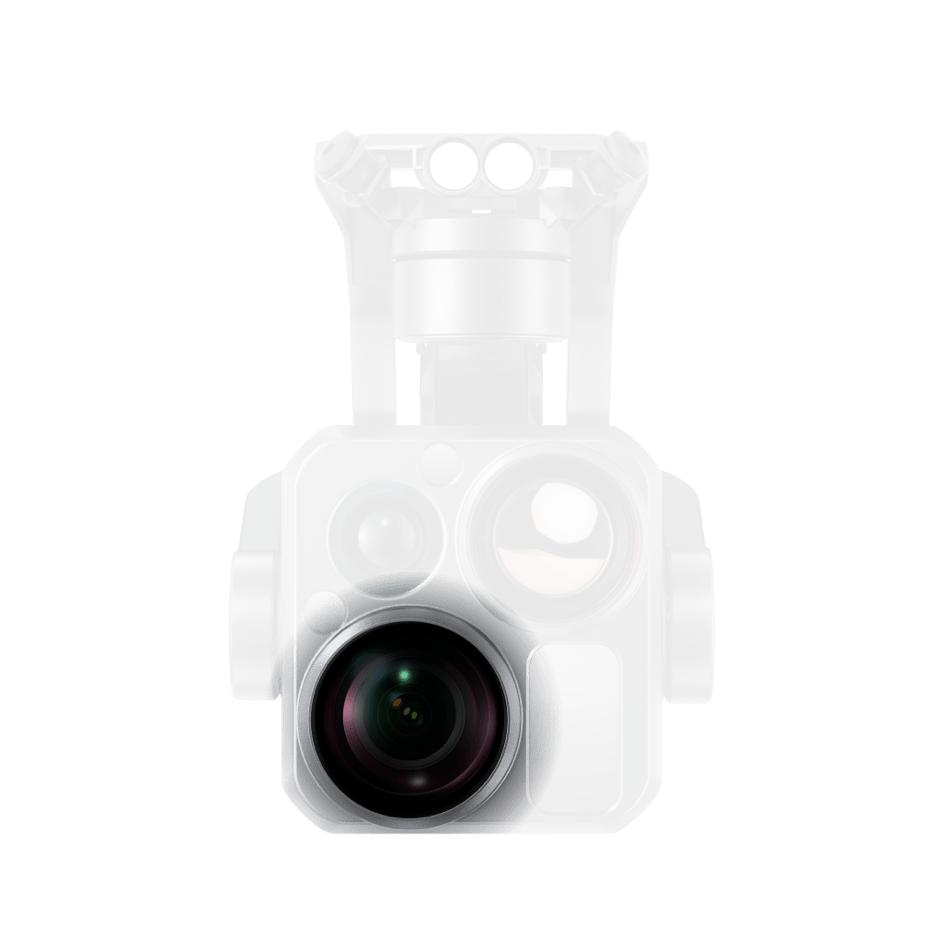

Dual Night Vision Cameras

350 m Nighttime Human Detection

AI Target Recognition

Hot-Swappable Battery

15 km
Transmission Range

42 min
Max. Flight Time

Explore the Night

1/1.2-inch CMOS

8 MP

2.61–16x Digital Zoom

147.3 mm Equivalent Focal Length

ISO: 100-100000

Max. Video Resolution: 3840×2160@30fps

Photo Size: 3840×2160

1/1.2-inch CMOS

8 MP

1–2.6x Digital Zoom

53.9 mm Equivalent Focal Length

ISO: 100-100000

Max. Video Resolution: 3840×2160@30fps

Photo Size: 3840×2160

640×512 Resolution

110 mm Equivalent Focal Length

1–16x Digital Zoom

Range: -20°C to +150°C / 0°C to +550°C

Accuracy: ±3°C or ±3% of the reading

Range: 5–1200 m

Accuracy: ± (1 m + D×0.15%)
(D refers to distance from vertical reflective surface)

8° Field Angle

200 m Illumination Distance

30° Field Angle

50 m Illumination Distance

1/1.2-inch CMOS

8 MP

2.61–16x Digital Zoom

Focal Length: 43.5 mm

ISO: 100-100000

Max. Video Resolution: 3840×2160@30fps

Photo Size: 3840×2160

1/1.2-inch CMOS

8 MP

1–2.6x Digital Zoom

Focal Length: 15.91 mm

ISO: 100-100000

Max. Video Resolution: 3840×2160@30fps

Photo Size: 3840×2160

640×512 Resolution

Focal Length: 25 mm

1–16x Digital Zoom

Range: -4℉ to 1022℉

Accuracy: ±3°C or ±3% of the reading

Range: 16.4–3737 ft

Accuracy: ± (1 m + D×0.15%)

(D refers to distance from vertical reflective surface)

8° Field Angle

200 m illumination

30° Field Angle

50 m illumination

No Blind Spots
Ultimate Obstacle Avoidance

The EVO Max series is the commercial drone that combines traditional binocular vision systems with millimeter wave radar technology. This allows the onboard Autel Autonomy Engine to perceive objects down to 0.5 inches, eliminating blind spots and enabling operation in low light or rainy conditions.

Anti Interference

The EVO Max 4NZ V2 uses advanced flight control modules and algorithms that can identify flight control interference signals and satellite positioning interference signals. This enables the EVO Max 4NZ V2 to fly confidently near power lines, critical structures, and in complex areas.

A-Mesh Networking Solution

EVO Max series features the new A-Mesh system, enabling drone-to-drone autonomous communication, connection, and collaboration.

Zonal Operations

Supports dual-controller operation with two aircraft, enabling zonal UAV missions to enhance flight efficiency. It also allows collaborative obstacle avoidance between networked UAVs, ensuring flight safety.

Information Sharing

Within the network, both remote controllers can simultaneously view the UAV’s live feed. The AI target recognition function used on the primary remote controller is also synchronized on the secondary remote controller. Additionally, both controllers support PinPoint positioning.

Relay Operations

In scenarios with signal obstructions or weak signals, such as mountainous terrain or remote areas, a UAV can be rapidly deployed as a mobile relay communication node, providing reliable signal support for another mission UAV operating at a distant location, effectively expanding communication coverage.

Zonal Operations

Information Sharing

Relay Operations

Supports dual-controller operation with two aircraft, enabling zonal UAV missions to enhance flight efficiency. It also allows collaborative obstacle avoidance between networked UAVs, ensuring flight safety.

Within the network, both remote controllers can simultaneously view the UAV’s live feed. The AI target recognition function used on the primary remote controller is also synchronized on the secondary remote controller. Additionally, both controllers support PinPoint positioning.

In scenarios with signal obstructions or weak signals, such as mountainous terrain or remote areas, a UAV can be rapidly deployed as a mobile relay communication node, providing reliable signal support for another mission UAV operating at a distant location, effectively expanding communication coverage.

Applications

Law Enforcement

Security Patrol

Emergency Search & Rescue

Firefighting & Rescue
