EVO II RTK Series V3
Unrivaled Accuracy And Control
Centimeter-Level Positioning
The EVO II RTK Series V3 introduces a brand-new RTK module, which
provides real-time centimeter-level positioning data, and supports Post-Processing Kinematic
(PPK). The aircraft can record the original satellite observation data, camera exposure
parameters and more. The positioning system supports an RTK base station and NTRIP RTK
network, which help to achieve accurate and stable data acquisition in complex operation
environments.
-
RTK Horizontal Positioning Accuracy: 1cm+1ppm -
RTK Vertical Positioning Accuracy: 1.5cm+1ppm
-
No GCP Required
EVO II RTK Series V3 can connect to an NTRIP network and does not need GCPs to provide centimeter-grade accuracy.
-
3rd Party Base Station Support
EVO II RTK Series V3 supports all NTRIP-compatible base stations.
Autel Explorer For Mapping
Multi-NTRIP Profile Saving
Photo Replication
Multi-Battery Missions
Advanced Feature Sets
-
Create Rectangular or Polygon Missions -
Supports Double grid mapping for additional angle customizable -
Have complete manual control over camera settings -
Non stop turning on corners saves time and battery life -
Customizable course headings to meet orientation requirements
Capture Every Detail
EVO II Pro RTK V3 has high dynamic range and
powerful low light performance, enabling users to capture clear detail sets with minimal
distortion and noise.
1-Inch Ultra-Sensitive Sensor
The EVO II Pro RTK V3 comes with a NEW updated 1-inch 6K CMOS
image sensor with a maximum of 20 megapixels. Thanks to the ultra-sensitive algorithm,
you can still shoot clean, detailed, low-noise data sets under twilight or night
conditions.
f/2.8 ~ f/11 Adjustable Aperture
Adapt to lighting changes by adjusting the lens aperture size,
giving the pilot more shutter speed control.
-
Zoom In For The Details
EVO II Pro RTK V3 has optimized its datasets to be easily adjusted with post processing software applications.
-
Optimized For Software Image Correction
EVO II Pro RTK V3 has optimized its datasets to be easily adjusted with post processing software applications.
Dual Cameras, Accurate Temperature Measurement
The EVO II Dual 640T RTK V3 is equipped with a
high-resolution thermal imaging camera and an all new Sony .8" 50 megapixel RYYB sensor.
High-Resolution Thermal Imaging Sensor
Equipped with a 640x512 high-resolution thermal imaging camera
featuring a 13mm focal length lens and 16x digital zoom, it is easy to observe distant
targets. The system uses a new image processing algorithm, making thermal imaging
details clearer and more discernible than the competition with the similar resolution
and hardware.
Precise Temperature Measurement
The EVO II Dual 640T RTK V3 can accurately detect heat sources
within a distance of 2-20 meters. By leveraging the compensation algorithm of infrared
temperature measurement, the 640T RTK can regulate temperature deviations within 3
degrees Celsius.
-
New Image Processing Algorithm
The V3 system uses a brand new image processing algorithm, making thermal imaging details sharper and more discernible than competition with the similar resolution and hardware. -
30hz Refresh Rate For Videogrammetry
The EVO II RTK Dual V3 provides high refresh rates for accurate and detailed 3D thermal maps. -
Zoom In For The Details
Focus in on critical areas with the EVO II RTK V3's 4x lossless zoom and 16x digital zoom. -
Multiple Color Palettes
White Hot | Cold and Hot | Rainbow | Enhanced Rainbow | Ironbow | Lava | Arctic | Searing | Gradation | Heat Detection
SkyLink 2.0 Video Transmission
SkyLink 2.0 is built into the EVO II Series
V3 chipset, expanding the possibilities for your most critical workflows.
9+ Miles
Do more because you can fly further away.
QHD
Incredible video resolution within a mile, meeting most common use cases.
2.4GHz / 5.8GHz / 900MHz
Supports tri-band communication with automatic frequency hopping for maximum anti-interference capabilities.
*900MHz is only applicable for FCC countries.

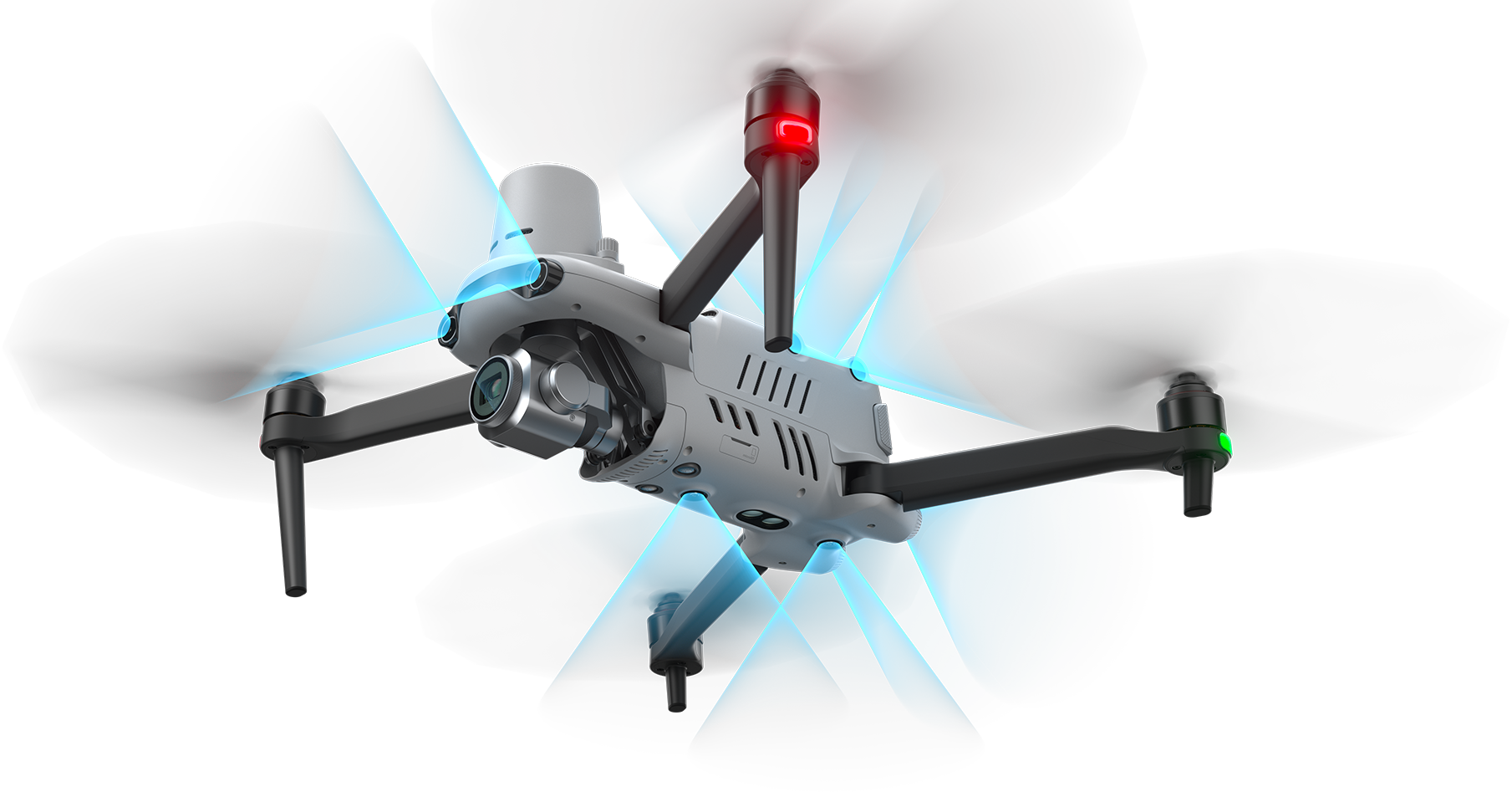

360° Obstacle Avoidance
Equipped with 19 groups of sensors including 12 visual
sensors,the main camera, ultrasound, IMUs and other sensors enable building of
three-dimensional maps and path planning in real time.
*Please refer to the manual for details on obstacle
avoidance and its limitations, which may or may not work in limited lighting environments,
under direct strong sunlight, or across thin tree branches or wires.
Portable and Easy to Use
-
Compact Design
The EVO II RTK Series V3 folds up for ease of transport and deployment. -
Trouble Free Daily Workflows
The EVO II RTK Series V3 only takes 45 seconds from setup to takeoff.
Safe and Sturdy
27mph Max Wind Resistance
EVO II's Smaller Cross Section and powerful motors allows greater stability and control in all windy conditions.- -
- -
No Fly Zones*
EVO II RTK Series V3 does not have any no fly zones and will not prevent the pilot from taking off.
38 Minutes Flight Time
Enjoy up to 38 minutes of flight time - 20%~30% more than the next leading competitor for more area coverage and longer missions.- -
- -
No Forced Updates**
EVO II RTK Series V3 does not need to be on the latest hardware or app version in order to take off unlike other competitors.
*Please fly safely and consult your local laws and
regulations. Autel Robotics is not liable for any unauthorized flights.
**It’s required to update the latest firmware and app to enjoy comprehensive warranty. More information please refer to warranty policy.
**It’s required to update the latest firmware and app to enjoy comprehensive warranty. More information please refer to warranty policy.
Autel Smart Controller V3
The Smart Controller V3's
7.9-inch, 2000 nits high-brightness screen is clearly visible under direct sunlight. SkyLink 2.0 Transmission technology guarantees long-distance operations from over 9 miles away and enhances anti-interference abilities with triple band frequency hopping. The customized Android system allows for additional flexibility with 3rd party apps and an IP43 rating ensures all weather performance.
-
9+ Miles Transmission Range -
Maximum 2000 nits Brightness -
4.5 Operating Hours -
IP43 Resistance
Applications
-
Powerline Inspection -
Photogrammetry
-
Law Enforcement -
Firefighting
