Autel Alpha
Autel Alpha
Beyond The Frontiers

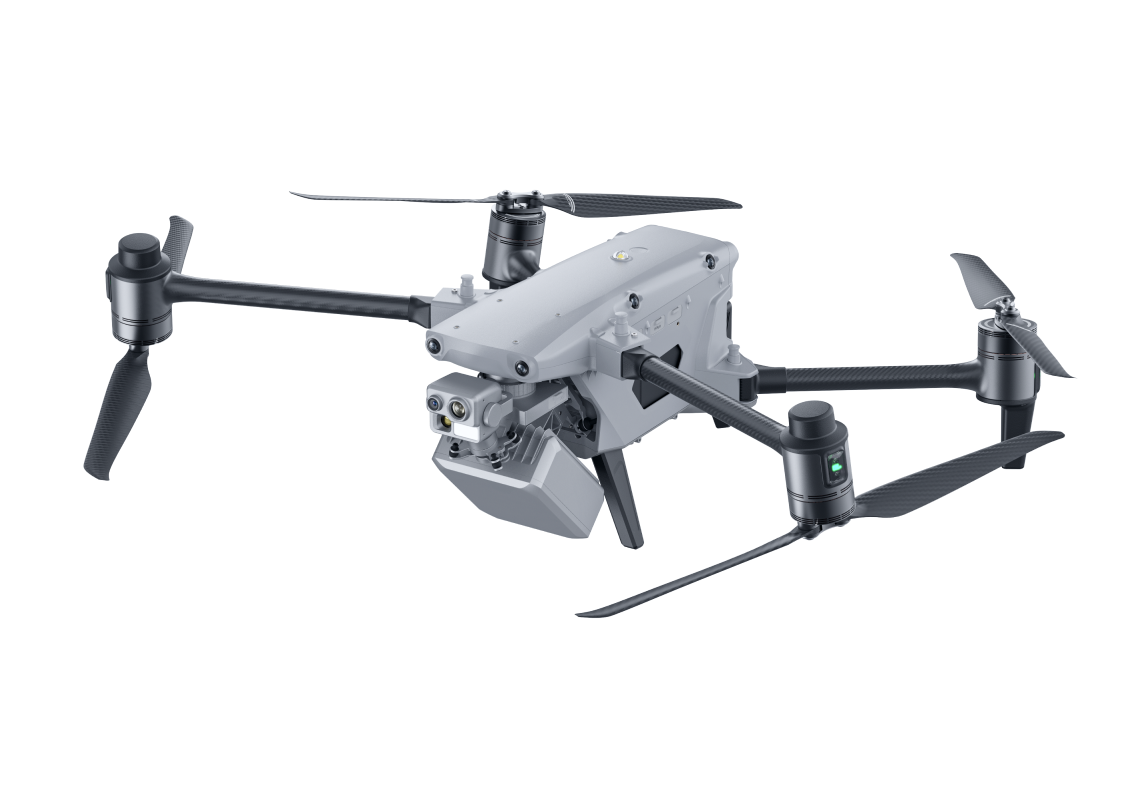

Autel Alpha is an intelligent industrial drone for multi-purpose. Boasting significant enhancements in autonomous flight capabilities, anti-interference capabilities, obstacle avoidance capabilities, video transmission technology, and battery systems, it injects robust performance into the flight platform. With a foldable design and IP55-rating level, it tackles challenging environments. The built-in RTK dual-antenna system ensures precise control within millimeters when carrying out the missions.Paired with the next-gen DG-L35T gimbal, it integrates a 560x hybrid zoom camera, dual thermal imaging cameras, a visible light wide-angle camera, and a laser rangefinder. The dual thermal imaging cameras meet the needs of both short-range overview and long-range detail observation, achieving distant operation scenarios with unobstructed personnel recognition within an 8-kilometer range, providing more professional and comprehensive solutions for applications such as public safety, energy inspection, and emergency management.
Superior Anti-interference
High-precision Visual Navigation
AI Target Recognition and Positioning
56x Dual Thermal Camera
4K 35x Optical Zoom
IP55 Rating
Hot-swappable Battery
Wire-Level Obstacle Avoidance and Pathfinding
15 Kilometers Video Transmission Range
Flexible Payload Expansion
Insight Beyond Limits

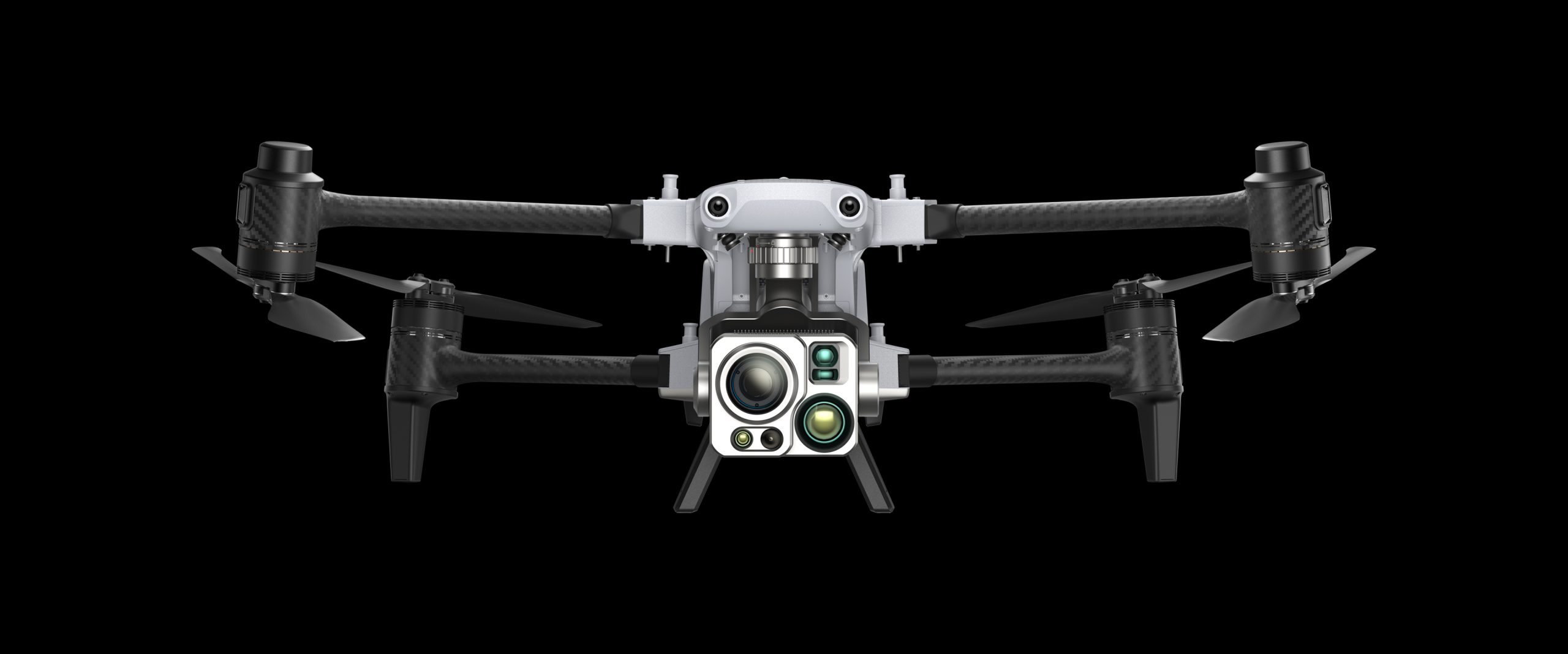

Autel DG-L35T Gimbal integrates dual thermal imaging cameras (short/long focal length), 4K 35x Optical Zoom Camera, a wide-angle camera and a laser rangefinder.
Zoom Camera
8 MP
4K 35x optical zoom
560x hybrid zoom Ultra-sensitive ISO
supports up to a maximum of 160,000
Wide Camera
48 MP
Aperture: F/2.8
DFOV: 84°
Equivalent focal length: 24mm
Dual Thermal Camera
640*512
56x hybrid zoom
13mm focal length wide-angle thermal imaging
45mm focal length long-range thermal imaging
Laser Rangefinder
Measurement range: 10-2000 meters
Measurement accuracy: ＜400m: +1m;
＞400m: D×0.3%
* where D represents the distance from the vertical
reflecting surface
Exceptional Anti-Interference Capability
Exceptional Anti-Interference Capability,Autel Alpha's high-precision visual positioning capabilities, adaptive frequency-hopping and SLAM navigation technology empowers resistance from interference and enables the drone to fly confidently near powerlines, critical structures and in complex areas.
Autonomous Flight
Autel's Autonomy Engine is continuously improving, enabling functions such as global path planning and 3D scene reconstruction in complex environments. It ofers various obstacle avoidance capabilities, including return-to-home, manual contro, and mision planning, providing a more professional solution for industries such as security, inspection, and surveying.
* This feature is pending future updates.
No Blind Spots,Ultimate Obstacle Avoidance
By integrating multi-source sensor fusion technology, including 5-direction dual fisheye vision + 6-direction millimeter-wave radar, the drone is equipped with wire-level obstacle avoidance and pathfinding capabilities. It can detect minor obstacles like glass, poles, and powerlines. Additionally, it supports nighttime obstacle avoidance for flight safety.
Platform Capabilities
Redefines proficiency with its robust platform and all weather design.
Protection Rating: IP55
Wind Resistance: 12m/s
Maximum Flying Altitude: 4500 meters
Operation Temperature: -20℃ to 50℃
*With high-altitude propeller
Multiple Payload Capability
The aircraft features multiple mounting interfaces: mounting interfaces. The Autel PSDK developer platform is open for creating a new industry ecosystem such as searchlights, loudspeakers, and more.
Hot-Swappable Batteries
Adopting a dual-battery redundant design, the flight time reaches 40 minutes, supporting hot-swappable batteries for seamless, efficient operations.
High-definition Transmission,
Performance Upgrade
With Autel Skylink 3.0, the system comes with 4 antennas, 4 Frequency bands, enabling a transmission distance of up to 15 kilometers. It supports auto frequency hopping on 900M/2.4GHz/5.2GHz/5.8GHz*, automatically selecting the optimal channel based on electromagnetic interference for robust anti-interference capabilities, featuring a high transmission of 64Mbps and low transmission latency.
15 kilometers
Image Transmission Distance
1080P/30FPS
Real Time Video Quality
900 MHz/2.4 GHz/5.2GHz/5.8 GHz
Frequency Bands*
* Some frequencies are only available in some regions or for indoor use only. Check local laws and regulations for details.
Autel Enterprise App Platform
The Autel Enterprise App is built from the ground up for industrial applications and features a brand-new interface for simple, efficient operation. Additional features and semi-autonomous modes maximize the Autel Alpha' mission capability.
Quick Mission
Temporary quick missions can be created while executing other missions, andmultiplesub-missions can be stacked for enhanced flexibility.
Waypoint Mission
Users can add waypoints for flexible, non-structured flight paths.
Polygon Mission
Supports one-click automatic generation of polygon flight areas
Quick Mission
Temporary quick missions can be created while executing other missions, andmultiplesub-missions can be stacked for enhanced flexibility.
Waypoint Mission
Users can add waypoints for flexible, non-structured flight paths.
Polygon Mission
Supports one-click automatic generation of polygon flight areas
AI Target Recognition
Based on Autel's AI recognition technology, the Autel Alpha can automatically identify and lock onto different types of targets such as human, boat or vehicles through zoom, wide, or infrared cameras, projecting the target's location onto the map.
Laser Ranging
Click on the remote controller screen, it will show the target latitude, longitude, height, and other information swiftly.
Tripod
The gimbal locks onto the target, and follows the target's movement while hovering, ensuring the target remains at the center of the frame.
AI Target Recognition
Based on Autel's AI recognition technology, the Autel Alpha can automatically identify and lock onto different types of targets such as human, boat or vehicles through zoom, wide, or infrared cameras, projecting the target's location onto the map.
Laser Ranging
Click on the remote controller screen, it will show the target latitude, longitude, height, and other information swiftly.
Tripod
The gimbal locks onto the target, and follows the target's movement while hovering, ensuring the target remains at the center of the frame.
Data Security
Privacy protection: Data involving user and aircraft information, including flight logs, locations, and account information can only be physically accessed via the aircraft locally.Encrypted Data Storage: It supports AES encryption for photos, videos, and flight logs, requiring a password input for access.
Autel SDK
"The Autel SDK is open to the world, helping developers and partners reduce software and hardware development costs and jointly create a new industry ecosystem.
Mobile SDK / Payload SDK*
A well-designed software and hardware architecture enables developers to get started with ease, offering simplicity and convenience, and empowering the creation of exceptional UAV mobile application experiences.
Accessories
Autel Smart Controller V3
Daylight Readable display: 7.9 inches, 2000nit maximum brightness, 2048*1536 resolution.
SuperDownload: Download footage from drone to mobile device at a maximum rate of 20MB/s.
Functional interface: HDMI ports allow connection to 3rd party displays or monitors. The USB interface allows for 4G module expansion.
Ultra-long battery life: Up to 4.5 hours of continuous operation. 2 hours fast charging.
Local storage: Built-in 128G storage space allows 3rd party apps and mission media storage.
Loudspeaker And Spotlight Combo (optional)
Dimension: 196×129×78mm
Weight: 250g
Electrical Interface: PSDK Interface
Installation Method: Standard quick release mount
Working Temperature: -10 ℃ to 50 ℃
Speaker: Power @10W; Sound pressure 114db@1 meter; Broadcasting Distance≥300 m
Spotlight: Follow gimbal pitch; Brightness level adjustment; 30° to -90° controllable
STA100 Radio detection module (optional)
Size: 112*122*55 mm
Weight: 707.5g
Detectable spectrum range: 2.4, 5.2, and 5.8 GHz
Detection distance: 3km
Simultaneously detect quantity: ≥6
Basic function: Pilot positioning / interference source positioning
Introduction: By mounting high-precision radio direction-finding equipment on UAVs, it horizontally and vertically triangulates the target signal source (UAV controller) in the air, determining potential target areas and displaying them on a map. Visual searching of target areas combined with AI recognition assists in discovering UAV pilots.
Applications
Public Safety
Powerline Inspection
Search & Rescue
