UAV Pilot Positioning Solution
UAV Pilot Positioning Solution
Overview
The UAV pilot positioning solution aims to address the challenge of detecting UAV pilots in scenarios without broadcast protocols (Drone ID and Remote ID). By mounting high-precision radio direction-finding equipment on UAVs, it horizontally and vertically triangulates the target signal source (UAV controller) in the air, determining potential target areas and displaying them on a map. Visual searching of target areas combined with AI recognition assists in discovering UAV pilots. Additionally, the Autel Alpha is equipped with anti-radio interference capabilities and stable flight navigation without GNSS, ensuring the solution's stable operation in complex radio environments.
Pain Points
Rogue UAVs Are Disrupting the Skies
Unauthorized UAVs are flying into restricted airspace, threatening flight safety, public safety, and critical infrastructure.
Illegal Operators Use Stealth to Avoid Detection
Many rogue UAV pilots use tricks like signal hopping or turning off GNSS to hide from tracking systems. This makes it hard for traditional radar or visual systems to locate them quickly.
Hard to Catch, Hard to Prove
After a UAV crash, pilots often run away, and the UAV itself can’t prove who flew it. Without live tracking or behavior logs, law enforcement faces serious challenges.
Signal Jammers Cause Major Problems
Ground-based jamming devices interfere with normal UAV operations. They're small and hidden, making them hard to find and stop—but they can seriously affect safe flights.
Business Value
-
Expanded Coverage. Broader Detection
1. Supports detection of UAVs from top global brands
2. 3 km operational range for wide-area scanning
3. Locates concealed signal disruptors in UAV frequency ranges
-
Clear Benefits for Public Safety
1. Much higher chances of finding rogue pilots
2. Fewer illegal UAV incidents in key areas
3. Lower risk of airspace accidents
-
Smarter Tools for Law Enforcement
1. Find rogue pilots early and prevent escapes
2. Support fast, targeted enforcement response
3. Detect illegal jammers to protect mission safety
Workflow
Workflow
1
Autel Alpha takes off with a radio detection device
2
It scans wide areas for suspicious signals
3
If anything strange is found, the UAV flies
closer to investigate
4
It finds the rogue pilot and shares their
location instantly
Recommended Products

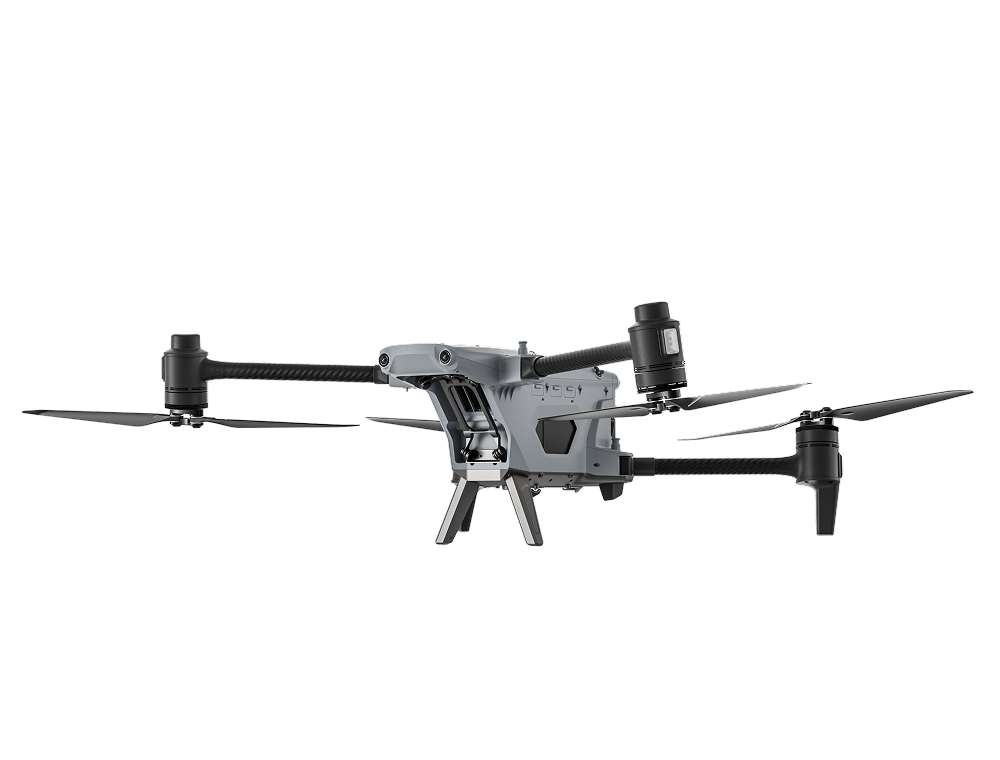

Autel Alpha
AI Target Recognition and Positioning | No Blind Spots
High-precision Visual Navigation | 15 km Transmission Range
Learn More

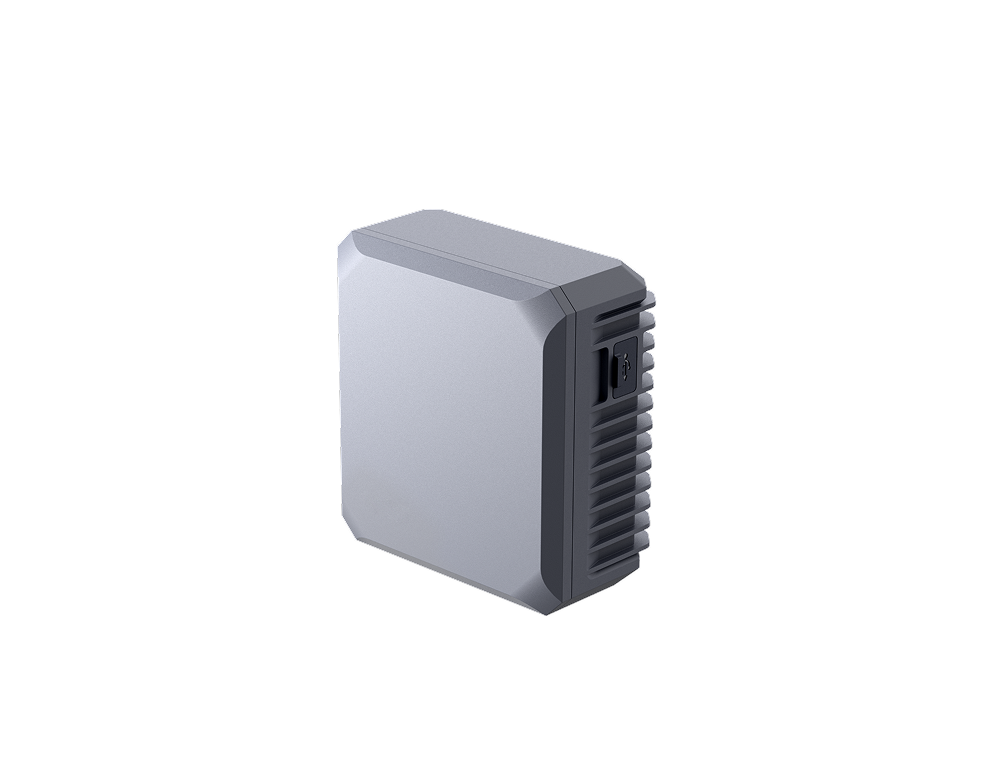

Tracer Air Radio Detection Device (STA100)
Pilot positioning | interference source positioning
3 km Detection distance | Up to 6 target sources at the same time

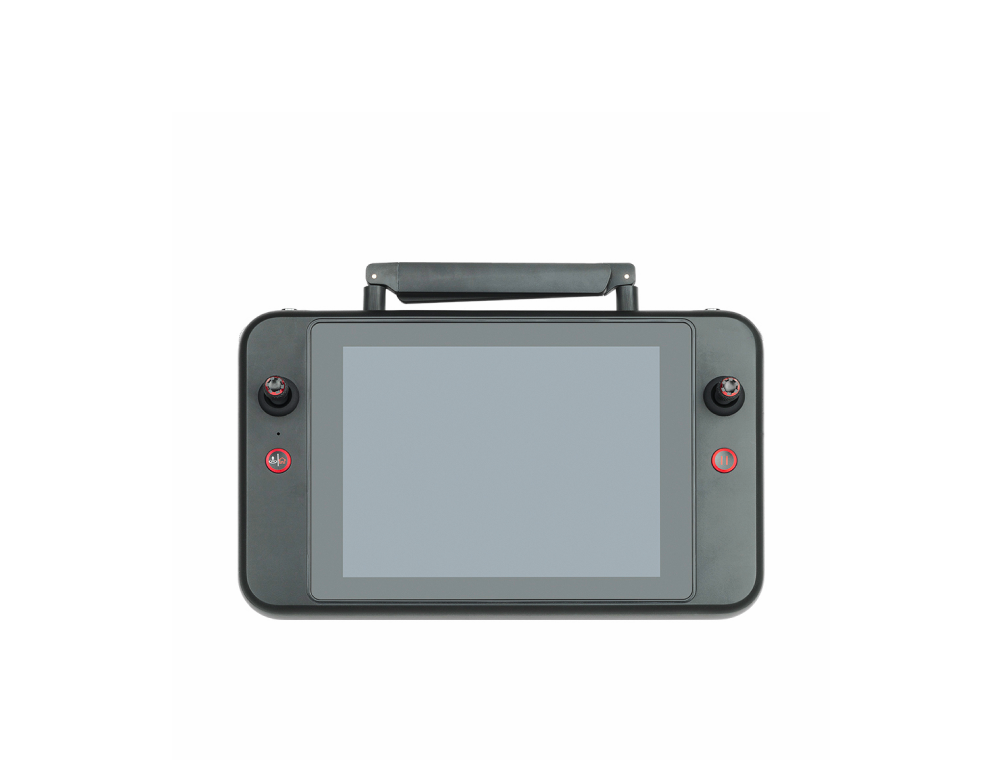

Autel Smart Controller V3
Max. 2000nits Brightness | 4 Hours Operating
128GB Internal Memory | Multi-Port Output
