Dragonfish Series
Dragonfish-25
Next-Gen Multi Mission eVTOL
The next-gen Dragonfish-25 continues Autel Robotics’ unique tilt-rotor design, combining the versatility of multi-rotor vertical takeoff and landing (VTOL) and fixed-wing’s long-endurance
Superior Anti-Interference
Vertical Takeoff and Landing
Rapid Deployment
Intelligent and User-Friendly
Maximum Payload Capacity: 10 kg [1]
Maximum Flight
Distance: 220 km [3]
Distance: 220 km [3]
Longest Flight Time with Payload: 210 min [2]
Maximum Flight Speed: 126 km/h
As of July 19, 2025
Total cumulative flight hours by Dragonfish series users
Border and Coastal Patrol
Law Enforcement
Energy Inspection
Traffic Inspection
Workflow
IP-rated integrated transport case, sturdy and reliable, shockproof and
pressure-resistant, designed for easy carrying and long-distance
transportation.
A single operator can complete full assembly within 10 minutes, with system
self-check completed in 10 seconds for rapid mission readiness.
Quickly generate and create flight paths with a tap on the remote controller
screen.
Configure flight routes and waypoints to meet diverse mission requirements.
Select a target to activate intelligent tracking mode.
Utilize zoom and laser rangefinding for efficient and precise target
locking.
Enhance search efficiency with infrared mode.
Fully Automated Flight: From takeoff to mission execution, the system
operates fully autonomously without manual intervention.
Single Operator: An optimized workflow enables a single operator to complete
complex missions.
Switch to manual mode at any time when needed to ensure operational safety.
One-Button RTH: Easily initiate automatic return-to-home with the Home
button.
Easy Storage: Quickly organize and store the UAV after flight for convenient
reuse.
1
Easy and Secure Transportation
2
10 Min Tool-Free Assembly
3
Intuitive Mission Planning
4
Simple Target Tracking
5
Efficient Execution and Control
6
Emergency Manual Switch
7
One-Button RTH and Easy Storage
Outstanding Performance
4000m
Maximum Takeoff Altitude
IP45
Protection Rating [4]
12 m/s
Maximum Wind Speed Resistance [5]
-20°C~50°C
Operating Temperature
Quick Assembly
The UAV adopts an innovative tool-free quick-release design that addresses the bulkiness and transport inconvenience of traditional VTOL fixed-wing UAVs. A single operator can complete full assembly within 10 minutes, with system self-check completed in 10 seconds, enabling rapid readiness for unexpected missions.

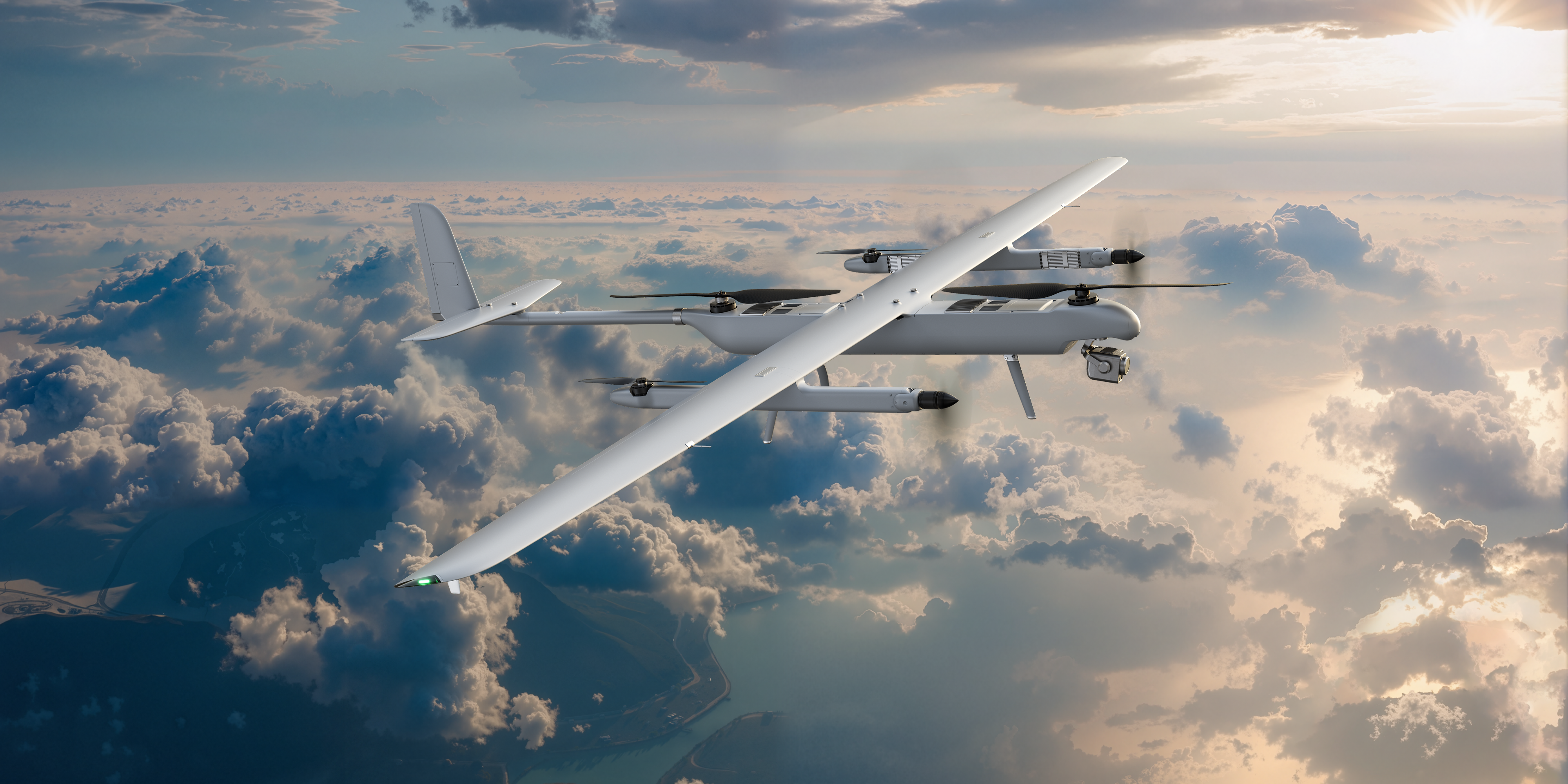

Extended Endurance
The Dragonfish-25 utilizes a narrow-body design and semi-recessed motors, combined with an automatic propeller lock technology in fixed-wing flight mode to further reduce aerodynamic drag during high-speed flight, effectively enhancing endurance. It can achieve a maximum loaded flight time of 210 minutes [2].

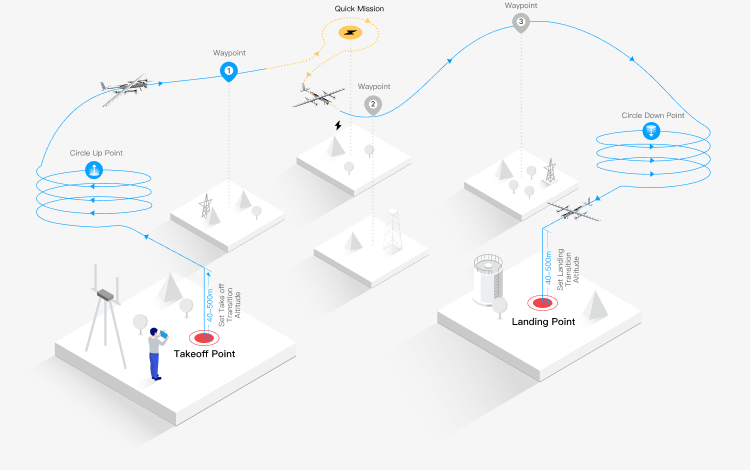

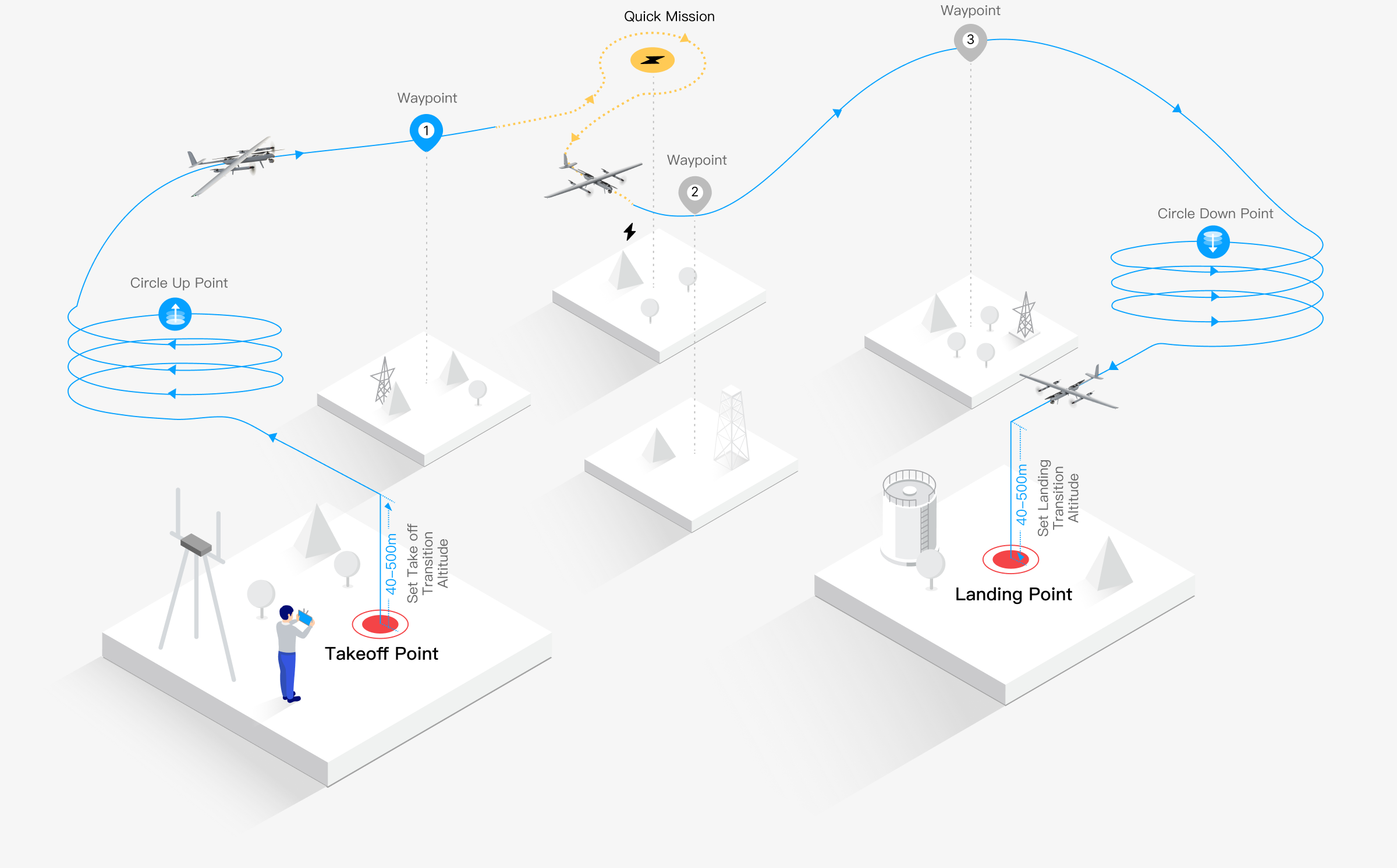

Flight Logic Diagram
Superior Anti-Interference Capability
In complex environments, the UAV maintains exceptional communication and video transmission performance, featuring strong anti-interference capabilities and stable, reliable transmission.
Smart Operations
Autel Robotics' advanced flight control technology and AI intelligence offers unparalled ease of use and precision.
Intelligent Tracking
Tap-to-Fly
AI Target Recognition and Positioning
Quick Mission
PinPoint Function
Offsite Landing
Temporary Mission
Terrain Avoidance
Mobile Platform Takeoff and Landing
One-Tap Self-Check
The UAV can lock on to its targets and flexibly adjust its flight path.
Supports multiple tracking modes.
Tap on the target in the remote control and the UAV will fly directly to the
target area. No sticks required
Built-in AI algorithms supports recognition and positioning of a multitude
of assets and targets.
Quick missions deviate from the preplanned flight route for changing mission
demands.
Pinpoint areas for temporary observation points, quick missions, or precise
emergency landings.
In response to low battery or special situations, the UAV can accurately
select offsite landing points.
Supports quick switching to new waypoint missions during flight.
Built-in terrain data allows the DF to maintain minimal AGL over changing
terrain.
Supports takeoff and landing on moving platforms.
Automatically performs a system check before takeoff, ensuring every flight
is safe and reliable.
Safety Mechanisms
Powered by Autel Robotics' exceptional flight control technology, ensuring stable
and reliable flight performance.
Made from high-strength composite materials with powerful propulsion, it
confidently withstands wind speeds up to 12 m/s [5].
The RTK antenna features an internal fuselage design, effectively reducing
aerodynamic drag and providing centimeter-level positioning accuracy for mission
flights.
Full system self-check promptly detect potential issues.
In fixed-wing flight mode, when affected by complex environments, the flight control
system will automatically switch to multirotor mode for assisted flight.
Provide real-time accurate airspeed monitoring, wind resistance, and anti-icing
capabilities to ensure stable and reliable flight.
The battery, IMU, barometer, compass, RTK, and positioning system all feature
redundant designs to ensure maximum flight safety.
Enables real-time monitoring of control surfaces and motor status, ensuring seamless
command execution and strong electromagnetic interference resistance.

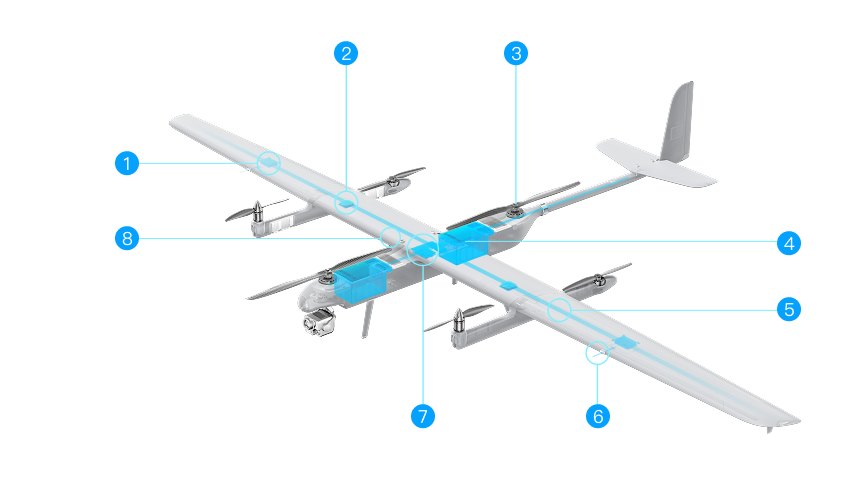

1
Redundant designs
The battery, IMU, barometer, compass, RTK, and positioning system all feature redundant designs to ensure maximum flight safety.
2
High-strength composite materials
Made from high-strength composite materials with powerful propulsion, it confidently withstands wind speeds up to 12 m/s [5].
3
Fuselage-Integrated RTK Antenna Design
The RTK antenna features an internal fuselage design, effectively reducing aerodynamic drag and providing centimeter-level positioning accuracy for mission flights.
4
AI fault warning
Full system self-check promptly detect potential issues.
5
Dual redundant airspeed sensors
Provide real-time accurate airspeed monitoring, wind resistance, and anti-icing capabilities to ensure stable and reliable flight.
6
Triple-redundant CAN bus communication
Enables real-time monitoring of control surfaces and motor status, ensuring seamless command execution and strong electromagnetic interference resistance.
7
Flight Mode Switching
In fixed-wing flight mode, when affected by complex environments, the flight control system will automatically switch to multirotor mode for assisted flight.
7
Exceptional flight control technology
Powered by Autel Robotics' exceptional flight control technology, ensuring stable and reliable flight performance.

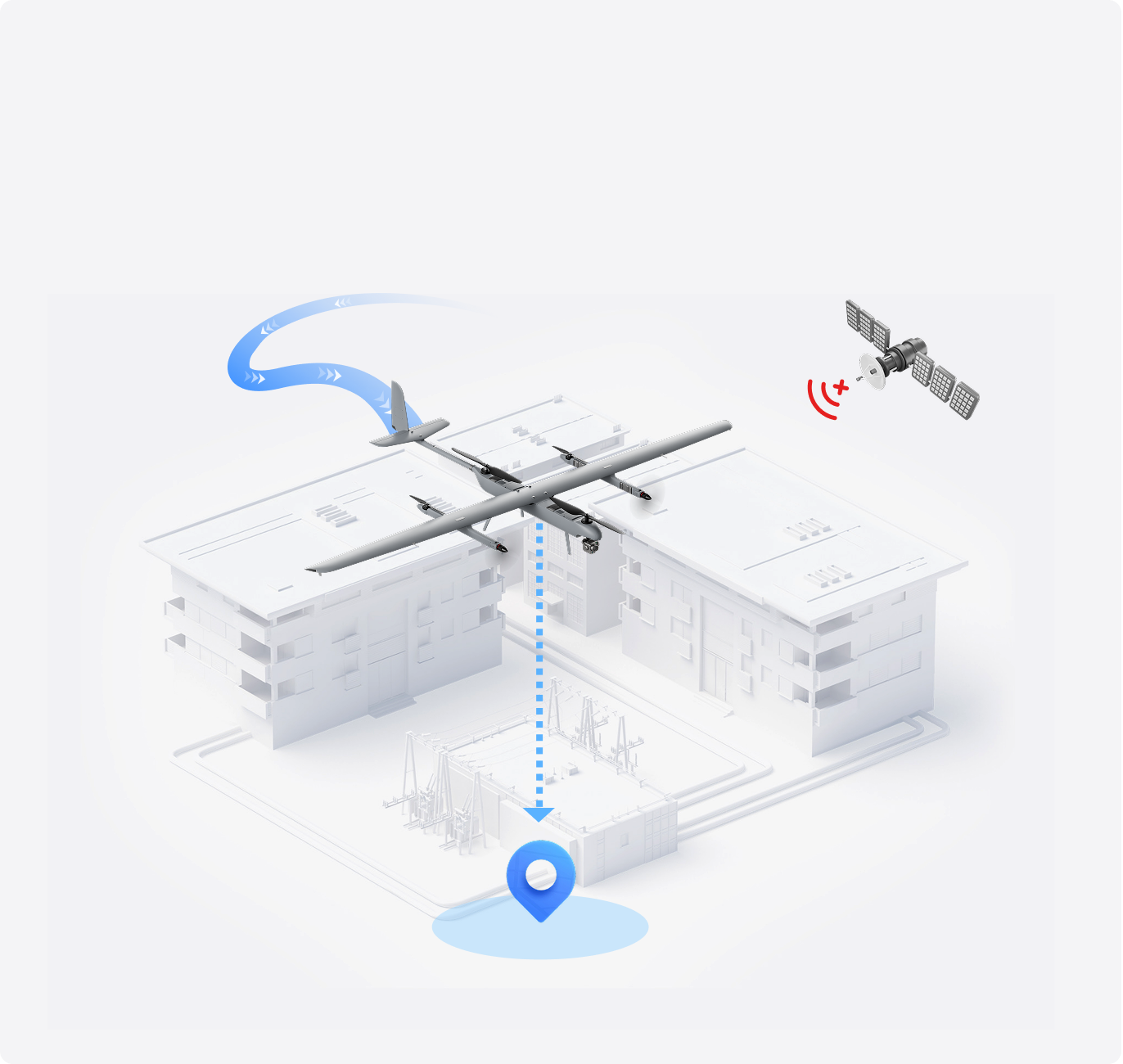

GNSS Loss Protection
When operating in non-GNSS environments, the UAV activates landing protection, automatically descending from its current position to ensure safety.

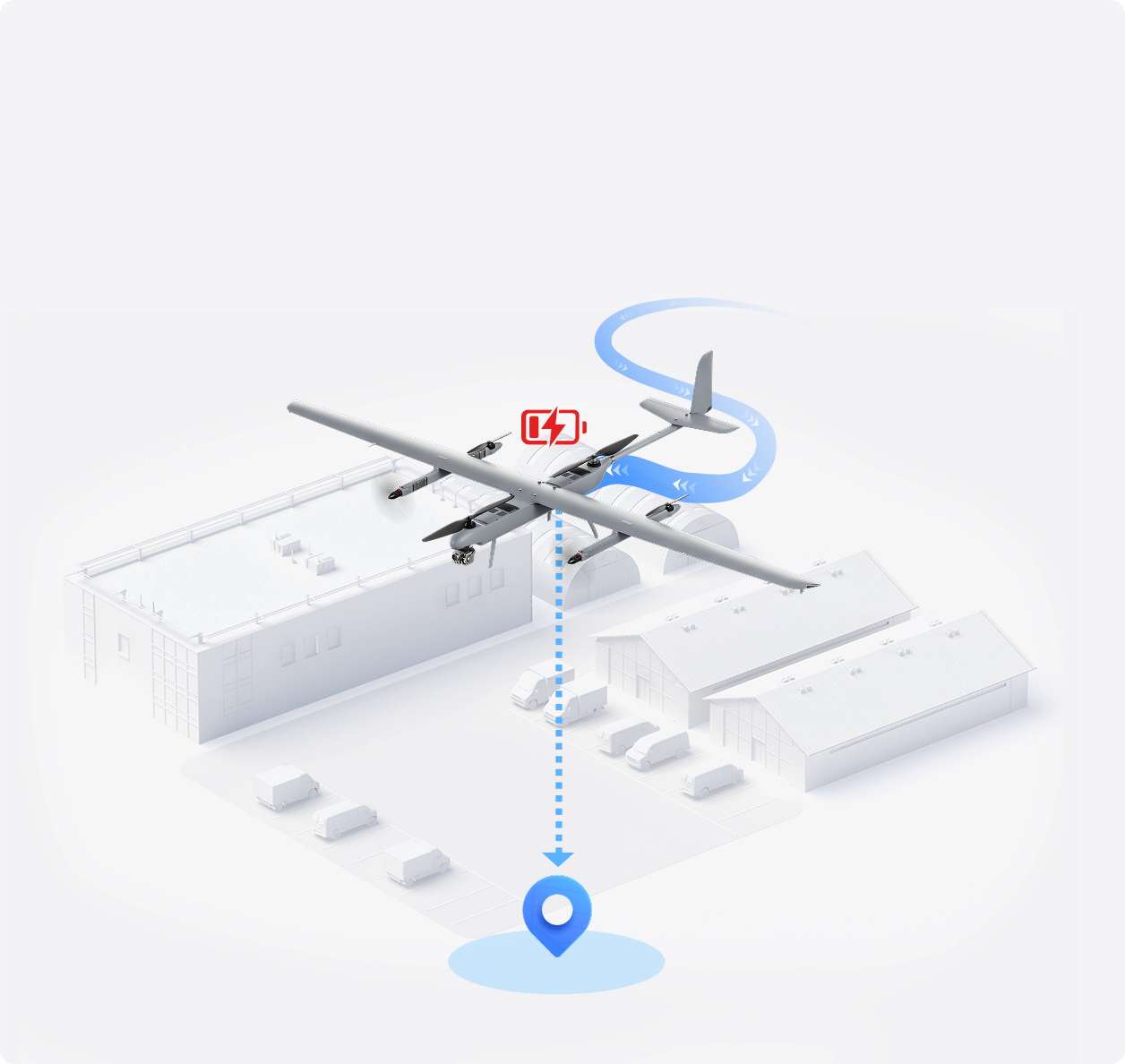

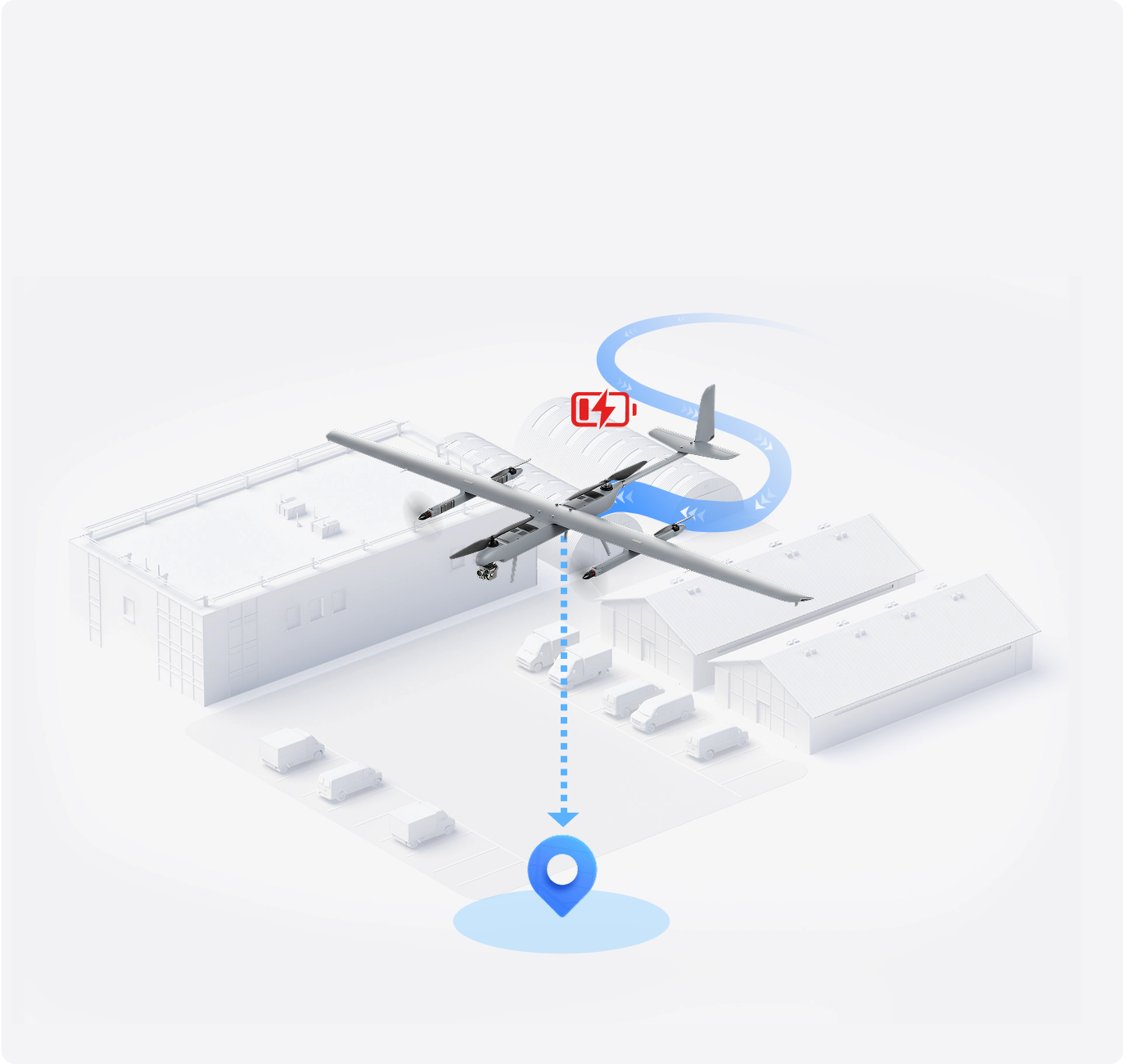

Intelligent Low-Battery RTH
Users can customize the expected landing battery level. The UAV calculates the optimal return timing in real-time based on current battery levels and flight status, ensuring it lands with a battery level close to the user-defined threshold.

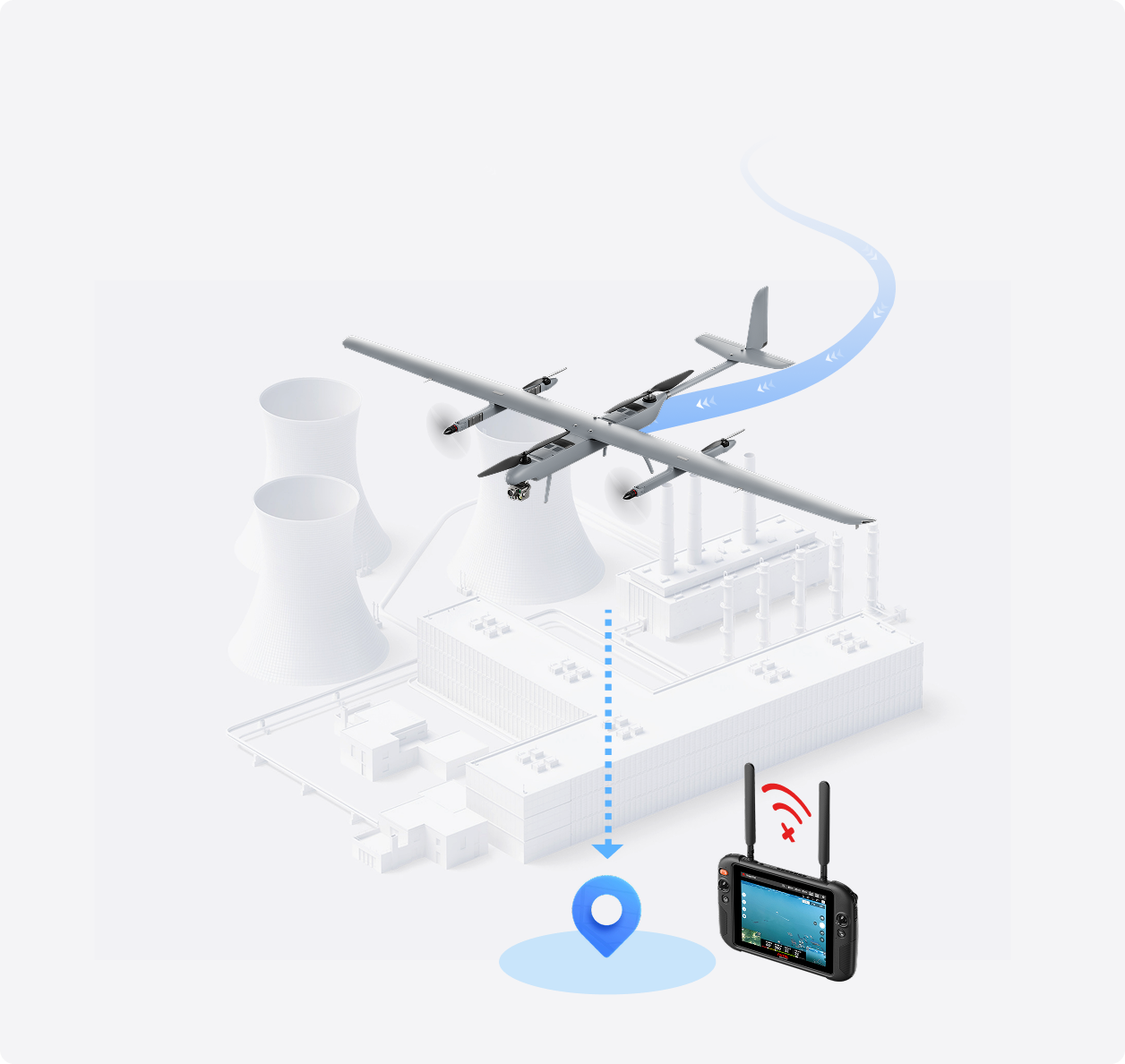

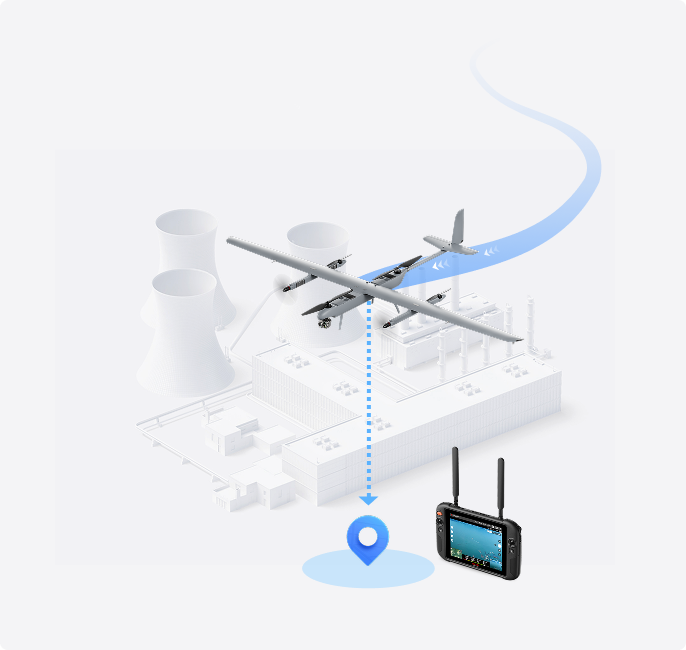

Auto RTH on Signal Loss
If signal between the UAV and the ground station is interrupted, signal-loss protection is enabled. If GNSS signals are available, the UAV initiates automatic RTH.

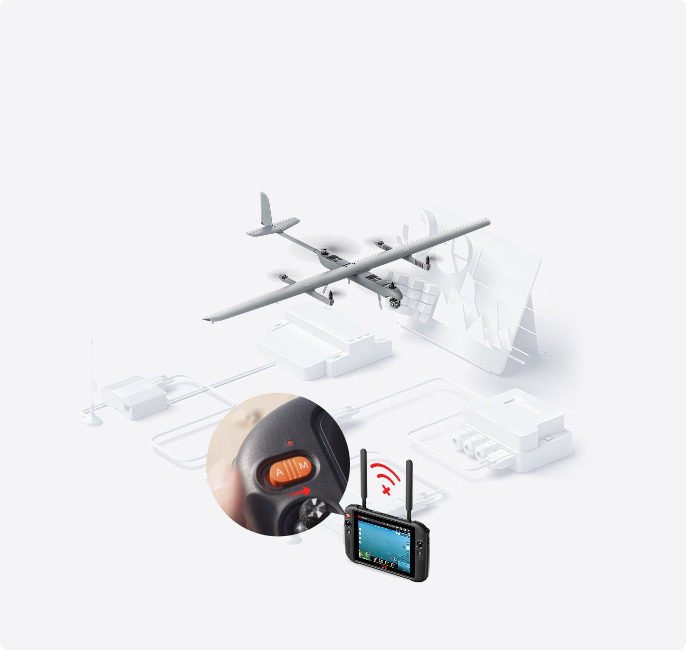

Emergency Manual Override
In case of an emergency, you can switch the remote controller to M mode at any time to immediately take manual control, ensuring flight safety.
Payload
The Dragonfish-25 can be freely equipped with a range of class-leading EO/MWIR payloads such as the DG-T5 and DG-T5L, breaking through lighting limitations to enable simple all-weather operations.
1/2"CMOS
Effective pixels: 12MP
Aperture: f/2.8
Video resolution: 4000×3000@25fps
Photo size: 4000×3000
1/1.8"CMOS
Effective pixels: 8MP
35x optical zoom
560x hybrid zoom
Video resolution: 3840×2160@30fps
Photo size: 3840×2160
640*512 Resolution
FOV 42°
Focal length: 13 mm
Measurement range: -20℃~150℃ / 0℃~550℃
Measurement accuracy: ±3℃ or ±3% of reading
640*512 Resolution
FOV 12.4°
Focal length: 45 mm
Measurement range: -20℃~150℃ / 0℃~550℃
Measurement accuracy: ±3℃ or ±3% of reading
Measurement range: 10-2000m
Measurement accuracy: ≤400m:1m；＞400m: D×0.3% * where D is the distance to a vertical reflecting plane
1/2"CMOS
Effective pixels: 12MP
Aperture: f/2.8
Video resolution: 4000×3000@25fps
Photo size: 4000×3000
1/1.8"CMOS
Effective pixels: 8MP
35x optical zoom
560x hybrid zoom
Video resolution: 3840×2160@30fps
Photo size: 3840×2160
640×512 Resolution
Focal length: 25 mm
Measurement range:-20℃~150℃ / 0℃~550℃
Measurement accuracy: ±3℃ or ±3% of reading
Measurement range: 10-2000m
Measurement accuracy: ≤400m:1m; ＞400m: D×0.3%* where D is the distance to a vertical reflecting plane
Adjustable FOV: 2°-70°
Lighting distance: 800m
Accessories
Dragonfish Ground Station
Dragonfish Ground Station
Display: 9.7-inch screen,1000-nit maximum brightness,2048x1536 resolution.
Battery Life: 4.5 hours.
Storage: Built-in 256GB storage.
Environmental Adaptability: Operating temperature range from -20°Cto 50°C.
Autel Smart Antenna Transmission
Autel Smart Antenna Transmission
The Autel Smart Antenna Transmission integrates directional and omnidirectional antennas, a base station motherboard, and an RTK antenna, enabling up to 45 km* ultra-long transmission with enhanced anti-interference performance.
More+Base Station (Optional)
Dragonfish Base Station (Optional)
With centimeter-level positioning accuracy and strong anti-interference capabilities, the dragonfish base station ensures reliable UAV operations even in challenging environments such as near high-voltage lines and metal structures.
